SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. ESC4000-E11 | SPECpower_ssj2008 = 20,408 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Computer Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
| Tested By: | ASUSTeK Computer Inc. | Test Location: | Taipei, Taiwan. | Test Date: | Apr 12, 2024 |
| Hardware Availability: | Mar-2024 | Software Availability: | Oct-2023 | Publication: | Jun 18, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

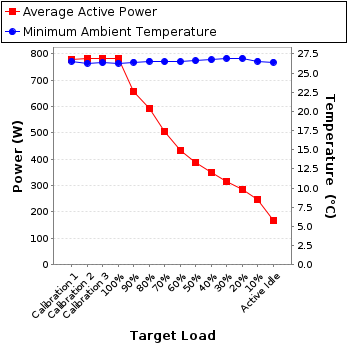

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 779 | 26.6 |
| Calibration 2 | 782 | 26.3 |
| Calibration 3 | 783 | 26.4 |
| 100% | 783 | 26.3 |
| 90% | 658 | 26.4 |
| 80% | 591 | 26.6 |
| 70% | 506 | 26.5 |
| 60% | 435 | 26.5 |
| 50% | 388 | 26.6 |
| 40% | 349 | 26.8 |
| 30% | 316 | 26.9 |
| 20% | 283 | 26.9 |
| 10% | 247 | 26.6 |
| Active Idle | 166 | 26.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91J615902 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | National Measurement Laboratory of the R.O.C. |
| Accredited by: | OMNIO Calibration Laboratory Ltd. |
| Calibration Label: | OCL-230602F02201 |
| Date of Calibration: | 2-Jun-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to PSU1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50 mm. |

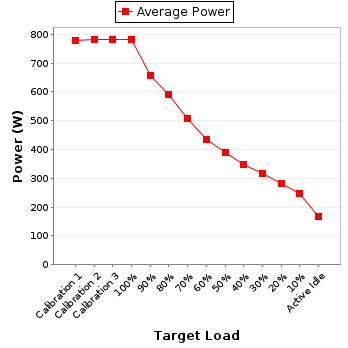

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 216 | 300.0 | 3.70 | 10.0 | 0.975 | 779 | 0.6% |
| Calibration 2 | 217 | 300.0 | 3.71 | 10.0 | 0.975 | 782 | 0.6% |
| Calibration 3 | 216 | 300.0 | 3.71 | 10.0 | 0.975 | 783 | 0.6% |
| 100% | 216 | 300.0 | 3.72 | 10.0 | 0.975 | 783 | 0.6% |
| 90% | 217 | 300.0 | 3.13 | 10.0 | 0.968 | 658 | 0.7% |
| 80% | 218 | 300.0 | 2.83 | 5.0 | 0.968 | 591 | 0.5% |
| 70% | 217 | 300.0 | 2.42 | 5.0 | 0.967 | 506 | 0.5% |
| 60% | 217 | 300.0 | 2.08 | 5.0 | 0.964 | 435 | 0.6% |
| 50% | 217 | 300.0 | 1.86 | 5.0 | 0.961 | 388 | 0.6% |
| 40% | 217 | 300.0 | 1.67 | 5.0 | 0.959 | 349 | 0.6% |
| 30% | 217 | 300.0 | 1.52 | 5.0 | 0.958 | 316 | 0.7% |
| 20% | 217 | 300.0 | 1.37 | 5.0 | 0.954 | 283 | 0.7% |
| 10% | 217 | 300.0 | 1.21 | 2.0 | 0.944 | 247 | 0.5% |
| Active Idle | 217 | 300.0 | 0.864 | 2.0 | 0.886 | 166 | 0.6% |
