IBM Corporation IBM System x3530 M4 | SPECpower_ssj2008 = 5,006 overall ssj_ops/watt | ||||
Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Test Date: | Oct 26, 2012 |
Hardware Availability: | Dec-2012 | Software Availability: | Dec-2012 | Publication: | Nov 14, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

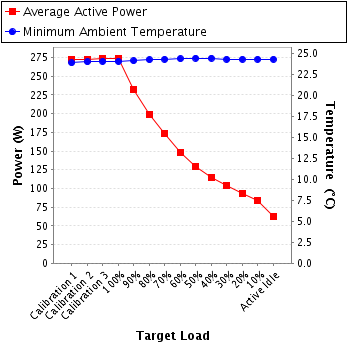

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 272 | 23.9 |
Calibration 2 | 273 | 24.0 |
Calibration 3 | 274 | 24.1 |
100% | 274 | 24.1 |
90% | 232 | 24.1 |
80% | 199 | 24.2 |
70% | 173 | 24.3 |
60% | 149 | 24.4 |
50% | 129 | 24.4 |
40% | 114 | 24.4 |
30% | 103 | 24.3 |
20% | 93.4 | 24.3 |
10% | 83.6 | 24.3 |
Active Idle | 62.6 | 24.3 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
Model: | WT210 |
Serial Number: | 91JB14535 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | NML/ROC |
Accredited by: | ETC, Taiwan |
Calibration Label: | 11-05-BAC-032-03 |
Date of Calibration: | 05-May-2012 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | none |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International, Inc. |
Model: | Watchport/H |
Driver Version: | 4.20.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 1 cm in front of SUT main intake |

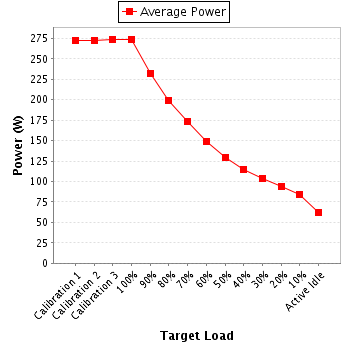

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 209 | 300.0 | 1.35 | 2.0 | 0.963 | 272 | 0.4% |
Calibration 2 | 210 | 300.0 | 1.35 | 2.0 | 0.964 | 273 | 0.4% |
Calibration 3 | 209 | 300.0 | 1.36 | 2.0 | 0.962 | 274 | 0.4% |
100% | 209 | 300.0 | 1.36 | 2.0 | 0.962 | 274 | 0.4% |
90% | 210 | 300.0 | 1.17 | 2.0 | 0.949 | 232 | 0.4% |
80% | 209 | 300.0 | 1.02 | 2.0 | 0.932 | 199 | 0.5% |
70% | 210 | 300.0 | 0.908 | 2.0 | 0.911 | 173 | 0.5% |
60% | 210 | 300.0 | 0.799 | 1.0 | 0.887 | 149 | 0.4% |
50% | 210 | 300.0 | 0.714 | 1.0 | 0.861 | 129 | 0.5% |
40% | 210 | 300.0 | 0.653 | 1.0 | 0.834 | 114 | 0.5% |
30% | 210 | 300.0 | 0.608 | 1.0 | 0.809 | 103 | 0.5% |
20% | 210 | 300.0 | 0.569 | 1.0 | 0.782 | 93.4 | 0.6% |
10% | 210 | 300.0 | 0.530 | 1.0 | 0.750 | 83.6 | 0.6% |
Active Idle | 211 | 300.0 | 0.449 | 0.5 | 0.662 | 62.6 | 0.6% |
