IBM Corporation IBM System x3650 M4 ssj_ops@100% = 1,204,440
ssj_ops@100% per JVM = 150,555
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Mar 3, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,151,769
Calibration 2     1,208,185
Calibration 3     1,208,828
ssj_ops@calibrated=1,208,507
100% 99.7% 1,208,507 1,204,440
90% 89.8% 1,087,656 1,084,752
80% 80.3% 966,805 970,333
70% 70.1% 845,955 847,193
60% 60.1% 725,104 726,584
50% 49.8% 604,253 602,075
40% 40.0% 483,403 483,175
30% 30.1% 362,552 363,721
20% 20.1% 241,701 243,230
10% 10.1% 120,851 121,582
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3650 M4
Form Factor: 2U
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8-Core, 2.20 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1, 4, 12, 13, 16 and 24 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: IBM 550w PSU(43X3311)
Disk Drive: 1 x 200GB SSD(x3650 M4 High Power Efficiency Kit, Feature Code: A2X1)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 4 x Integrated Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (See SUT Note)
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 111L
Management Firmware Version: 25K
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-DIMHIJCPIVH.001 149,952
WIN-DIMHIJCPIVH.002 150,186
WIN-DIMHIJCPIVH.003 150,910
WIN-DIMHIJCPIVH.004 149,250
WIN-DIMHIJCPIVH.005 152,738
WIN-DIMHIJCPIVH.006 149,865
WIN-DIMHIJCPIVH.007 150,851
WIN-DIMHIJCPIVH.008 150,687
ssj_ops@100% 1,204,440
ssj_ops@100% per JVM 150,555

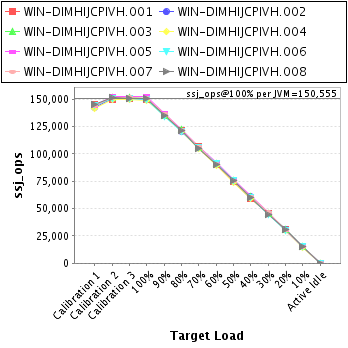

Graph of per-instance results
JVM 'WIN-DIMHIJCPIVH.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,071
Calibration 2     150,024
Calibration 3     150,975
ssj_ops@calibrated=150,500
100% 99.6% 150,500 149,952
90% 90.5% 135,450 136,190
80% 80.6% 120,400 121,266
70% 70.7% 105,350 106,429
60% 60.0% 90,300 90,287
50% 49.6% 75,250 74,669
40% 39.5% 60,200 59,393
30% 30.0% 45,150 45,101
20% 20.2% 30,100 30,465
10% 10.2% 15,050 15,368
Active Idle   0 0
Graph of results
JVM 'WIN-DIMHIJCPIVH.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,776
Calibration 2     150,659
Calibration 3     150,969
ssj_ops@calibrated=150,814
100% 99.6% 150,814 150,186
90% 90.2% 135,732 135,968
80% 80.1% 120,651 120,752
70% 70.0% 105,570 105,521
60% 60.0% 90,488 90,557
50% 49.6% 75,407 74,863
40% 40.3% 60,325 60,715
30% 30.3% 45,244 45,690
20% 20.3% 30,163 30,653
10% 10.2% 15,081 15,456
Active Idle   0 0
Graph of results
JVM 'WIN-DIMHIJCPIVH.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,052
Calibration 2     151,251
Calibration 3     151,416
ssj_ops@calibrated=151,334
100% 99.7% 151,334 150,910
90% 89.0% 136,200 134,688
80% 81.1% 121,067 122,725
70% 70.1% 105,934 106,087
60% 60.6% 90,800 91,637
50% 49.7% 75,667 75,266
40% 40.5% 60,534 61,253
30% 30.0% 45,400 45,360
20% 20.3% 30,267 30,722
10% 9.9% 15,133 15,008
Active Idle   0 0
Graph of results
JVM 'WIN-DIMHIJCPIVH.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,788
Calibration 2     149,829
Calibration 3     149,851
ssj_ops@calibrated=149,840
100% 99.6% 149,840 149,250
90% 90.0% 134,856 134,830
80% 80.6% 119,872 120,718
70% 69.9% 104,888 104,699
60% 59.9% 89,904 89,793
50% 49.6% 74,920 74,281
40% 39.5% 59,936 59,228
30% 30.3% 44,952 45,403
20% 20.2% 29,968 30,294
10% 9.8% 14,984 14,754
Active Idle   0 0
Graph of results
JVM 'WIN-DIMHIJCPIVH.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,146
Calibration 2     152,744
Calibration 3     152,429
ssj_ops@calibrated=152,587
100% 100.1% 152,587 152,738
90% 89.9% 137,328 137,219
80% 79.9% 122,069 121,896
70% 69.7% 106,811 106,419
60% 60.6% 91,552 92,412
50% 50.2% 76,293 76,529
40% 40.5% 61,035 61,857
30% 30.3% 45,776 46,167
20% 19.7% 30,517 30,061
10% 10.1% 15,259 15,472
Active Idle   0 0
Graph of results
JVM 'WIN-DIMHIJCPIVH.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,354
Calibration 2     151,025
Calibration 3     150,653
ssj_ops@calibrated=150,839
100% 99.4% 150,839 149,865
90% 88.9% 135,755 134,063
80% 79.7% 120,671 120,192
70% 70.4% 105,587 106,137
60% 60.3% 90,503 90,993
50% 50.4% 75,419 76,060
40% 39.8% 60,336 60,000
30% 29.8% 45,252 45,008
20% 20.1% 30,168 30,323
10% 10.2% 15,084 15,367
Active Idle   0 0
Graph of results
JVM 'WIN-DIMHIJCPIVH.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,191
Calibration 2     151,434
Calibration 3     151,643
ssj_ops@calibrated=151,539
100% 99.5% 151,539 150,851
90% 90.3% 136,385 136,880
80% 80.3% 121,231 121,747
70% 70.4% 106,077 106,625
60% 59.8% 90,923 90,695
50% 49.6% 75,769 75,164
40% 40.1% 60,616 60,749
30% 30.8% 45,462 46,643
20% 19.9% 30,308 30,206
10% 9.9% 15,154 15,049
Active Idle   0 0
Graph of results
JVM 'WIN-DIMHIJCPIVH.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,392
Calibration 2     151,218
Calibration 3     150,891
ssj_ops@calibrated=151,055
100% 99.8% 151,055 150,687
90% 89.3% 135,949 134,914
80% 80.1% 120,844 121,036
70% 69.7% 105,738 105,275
60% 59.7% 90,633 90,210
50% 49.8% 75,527 75,243
40% 39.7% 60,422 59,982
30% 29.4% 45,316 44,348
20% 20.2% 30,211 30,505
10% 10.0% 15,105 15,109
Active Idle   0 0
Graph of results
