Hitachi, Ltd. HA8000/TS10-hJM SPECpower_ssj2008 = 3,501 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jun 26, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 153 26.6
Calibration 2 155 26.5
Calibration 3 156 26.4
100% 156 26.4
90% 143 26.4
80% 119 26.4
70% 112 26.3
60% 102 26.3
50% 90.8 26.3
40% 80.8 26.2
30% 72.9 26.2
20% 66.9 26.2
10% 61.5 26.2
Active Idle 52.7 26.2

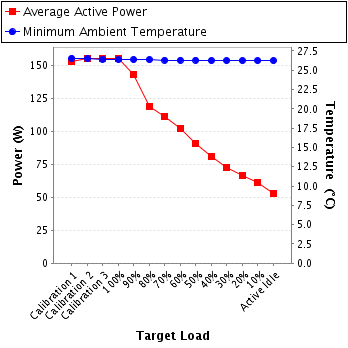

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric Corporation
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Metrology Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: S2012-06-50931
Date of Calibration: 12-Jun-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 40 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 99.6 150.0 1.55 2.0 0.990 153 0.4%
Calibration 2 99.6 150.0 1.57 2.0 0.991 155 0.4%
Calibration 3 99.6 150.0 1.58 2.0 0.991 156 0.4%
100% 99.6 150.0 1.58 2.0 0.991 156 0.4%
90% 99.6 150.0 1.46 2.0 0.987 143 0.4%
80% 99.7 150.0 1.22 2.0 0.984 119 0.4%
70% 99.7 150.0 1.14 2.0 0.980 112 0.5%
60% 99.7 150.0 1.06 2.0 0.974 102 0.5%
50% 99.8 150.0 0.942 2.0 0.967 90.8 0.5%
40% 99.8 150.0 0.842 2.0 0.962 80.8 0.6%
30% 99.8 150.0 0.764 1.0 0.957 72.9 0.4%
20% 99.8 150.0 0.705 1.0 0.950 66.9 0.4%
10% 99.8 150.0 0.654 1.0 0.942 61.5 0.5%
Active Idle 99.9 150.0 0.569 1.0 0.927 52.7 0.5%
Power details for pwr1
