Acer Incorporated Gateway GR160 F1 SPECpower_ssj2008 = 1,515 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Oct 27, 2009
Hardware Availability: Dec-2009 Software Availability: Jun-2009 Publication: Nov 18, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 196 21.9
Calibration 2 197 21.9
Calibration 3 197 21.9
100% 196 21.8
90% 187 21.8
80% 178 21.8
70% 168 21.8
60% 159 21.9
50% 150 21.8
40% 141 21.7
30% 132 21.7
20% 123 21.6
10% 109 21.6
Active Idle 81.4 21.6

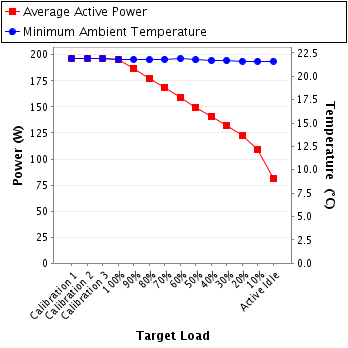

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H851272
Connectivity: RS232
Input Connection: Default
Calibration Institute: NIST
Accredited by: SE-Laboratories
Calibration Label: C56-0071
Date of Calibration: 15-Jun-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 0.986 2.0 0.957 196 0.5%
Calibration 2 208 300.0 0.989 2.0 0.957 197 0.5%
Calibration 3 208 300.0 0.988 2.0 0.957 197 0.5%
100% 208 300.0 0.985 2.0 0.957 196 0.5%
90% 208 300.0 0.944 2.0 0.954 187 0.5%
80% 208 300.0 0.899 2.0 0.950 178 0.5%
70% 208 300.0 0.856 2.0 0.946 168 0.5%
60% 208 300.0 0.813 2.0 0.942 159 0.5%
50% 208 300.0 0.767 2.0 0.938 150 0.6%
40% 208 300.0 0.726 2.0 0.933 141 0.6%
30% 208 300.0 0.683 2.0 0.927 132 0.6%
20% 208 300.0 0.641 2.0 0.920 123 0.7%
10% 208 300.0 0.582 2.0 0.904 109 0.7%
Active Idle 208 300.0 0.450 2.0 0.869 81.4 1.0%

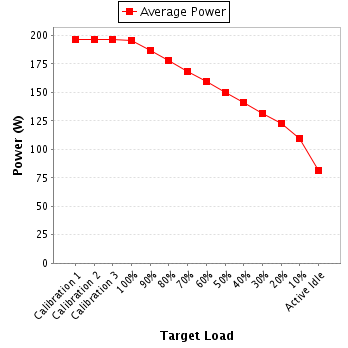

Power details for pwr1
