SPEC® OMPG2012 Result

Copyright 2012-2015 Standard Performance Evaluation Corporation

Hewlett-Packard Company

SPECompG_base2012 = 20.4

HP ProLiant DL580 Gen9
(Intel Xeon E7-8890 v3 @ 2.50)

SPECompG_peak2012 = 21.5

OMP2012 license: 1 Test date: Apr-2015
Test sponsor: Hewlett-Packard Company Hardware Availability: May-2015
Tested by: Hewlett-Packard Company Software Availability: Jan-2015

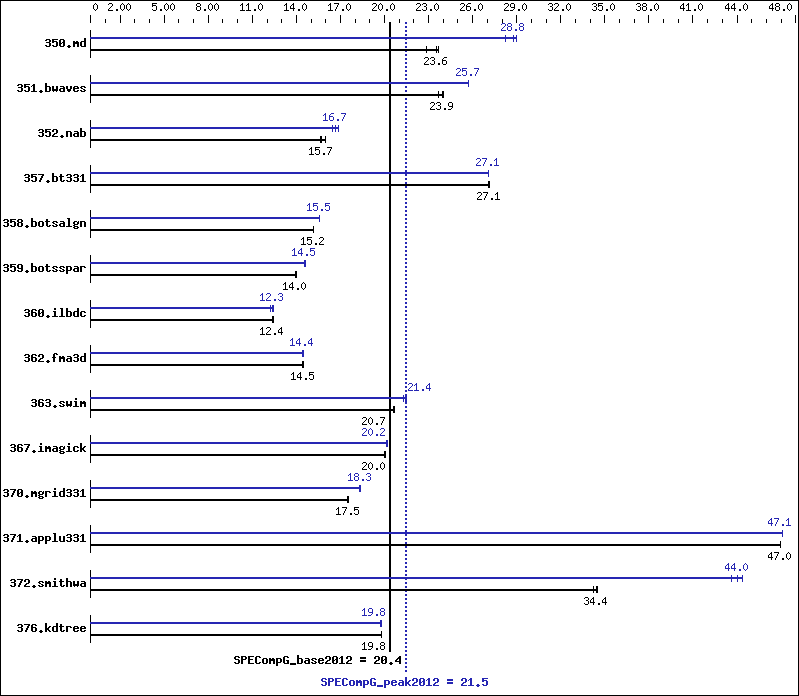

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-8890 v3
CPU Characteristics: Intel Turbo Boost Technology up to 3.30 GHz
CPU MHz: 2500
CPU MHz Maximum: 3300
FPU: Integrated
CPU(s) enabled: 72 cores, 4 chips, 18 cores/chip, 2 threads/core
CPU(s) orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory: 1.00 TB (64 x 16 GB 2Rx4 PC4-2133P-R, ECC)
Disk Subsystem: 1 X 300GB SAS, 10K RPM
Other Hardware: None
Base Threads Run: 144
Minimum Peak Threads: 72
Maximum Peak Threads: 144
Software
Operating System: SUSE Linux Enterprise Server 11 SP3 (x86_64)
Kernel 3.0.76-0.11-default
Compiler: C/C++/Fortran: Version 15.0.2.0 of Intel
Composer XE for Linux, Build 20150121
Auto Parallel: No
File System: ext3
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Threads Seconds Ratio Seconds Ratio Seconds Ratio Threads Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
350.md 144 203   22.9  195   23.7  197   23.6  144 160   29.0  164   28.2  161   28.8
351.bwaves 144 189   23.9  189   24.0  191   23.7  72 176   25.7  176   25.7  176   25.7
352.nab 144 243   16.0  248   15.7  248   15.7  144 233   16.7  231   16.9  236   16.5
357.bt331 144 175   27.1  175   27.1  175   27.1  144 175   27.1  175   27.1  175   27.1
358.botsalgn 144 287   15.2  287   15.2  287   15.2  144 280   15.5  280   15.5  280   15.5
359.botsspar 144 376   14.0  377   13.9  375   14.0  72 359   14.6  361   14.5  361   14.5
360.ilbdc 144 287   12.4  287   12.4  286   12.5  144 288   12.3  290   12.3  286   12.5
362.fma3d 144 263   14.5  263   14.5  262   14.5  144 263   14.4  263   14.4  263   14.5
363.swim 144 219   20.7  219   20.7  219   20.6  72 212   21.4  211   21.5  212   21.3
367.imagick 144 351   20.0  352   20.0  350   20.1  144 348   20.2  348   20.2  349   20.1
370.mgrid331 144 251   17.6  252   17.5  252   17.5  72 241   18.3  241   18.3  241   18.3
371.applu331 144 129   47.0  129   47.0  129   46.9  144 129   47.1  129   47.1  129   47.1
372.smithwa 144 157   34.2  156   34.4  155   34.5  72 122   44.0  123   43.7  121   44.4
376.kdtree 144 227   19.8  227   19.8  228   19.8  144 227   19.8  228   19.7  227   19.8

Platform Notes

 Sysinfo program /opt/omp2012/Docs/sysinfo
 $Rev: 395 $ $Date:: 2012-07-25 #$ 8f8c0fe9e19c658963a1e67685e50647
 running on DL580Gen9-6 Mon Apr 20 02:42:02 2015

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/omp2012/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E7-8890 v3 @ 2.50GHz
       4 "physical id"s (chips)
       144 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 18
       siblings  : 36
       physical 0: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 1: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 2: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
       physical 3: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27
    cache size : 46080 KB

 From /proc/meminfo
    MemTotal:       1058712696 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    SUSE Linux Enterprise Server 11 (x86_64)

 From /etc/*release* /etc/*version*
    SuSE-release:
       SUSE Linux Enterprise Server 11 (x86_64)
       VERSION = 11
       PATCHLEVEL = 3

 uname -a:
    Linux DL580Gen9-6 3.0.76-0.11-default #1 SMP Fri Jun 14 08:21:43 UTC 2013
    (ccab990) x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Apr 20 02:25 last=S

 SPEC is set to: /opt/omp2012
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda3      ext3  273G   41G  232G  15% /

 Additional information from dmidecode:
   BIOS HP U17 03/13/2015
   Memory:
    64x HP 752369-081 16 GB 1600 MHz
    32x UNKNOWN NOT AVAILABLE

 (End of data from sysinfo program)

General Notes

 ========================================================================
 Transparent Huge Pages enabled with:
   echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Software Environment:
   ulimit -s unlimited
 BIOS settings notes:
   Power Profile = Maximum Performance
   Thermal Configuration = Maximum Cooling
   Collaborative Power Control = Disabled
   Processor Power and Utilization Monitoring = Disabled
   Memory Refresh Rate = 1x
 ========================================================================
 General OMP Library Settings
   ENV_KMP_LIBRARY=turnaround
   ENV_KMP_STACKSIZE=2220M
   ENV_KMP_BLOCKTIME=infinite
   ENV_OMP_DYNAMIC=FALSE
   ENV_OMP_NESTED=FALSE
   ENV_OMP_WAIT_POLICY=ACTIVE
 ========================================================================
 General base OMP Library Settings
   ENV_KMP_AFFINITY=compact,0

 ========================================================================
 General peak OMP Library Settings
   ENV_KMP_AFFINITY=compact,0

 ========================================================================
 Per benchmark peak OMP Library Settings

 ========================================================================
 351.bwaves:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=static,1
 ========================================================================
 357.bt331:peak:
   ENV_OMP_SCHEDULE=static,1

 ========================================================================
 359.botsspar:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=guided

 ========================================================================
 362.fma3d:peak:
   ENV_OMP_SCHEDULE=static,1

 ========================================================================
 363.swim:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 370.mgrid331:peak:
   ENV_KMP_AFFINITY=compact,1

 ========================================================================
 372.smithwa:peak:
   ENV_KMP_AFFINITY=compact,1
   ENV_OMP_SCHEDULE=guided

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Base Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Base Optimization Flags

C benchmarks:

 -O3   -openmp   -ipo    -xAVX   -ansi-alias

C++ benchmarks:

 -O3   -openmp   -ipo    -xAVX   -ansi-alias

Fortran benchmarks:

 -O3   -openmp   -ipo    -xAVX   -align array64byte

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Peak Portability Flags

350.md:  -FR
357.bt331:  -mcmodel=medium
363.swim:  -mcmodel=medium
367.imagick:  -std=c99

Peak Optimization Flags

C benchmarks:

352.nab:  -O3   -openmp   -ipo    -xAVX   -fno-alias   -opt-malloc-options=1   -opt-calloc   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -ansi-alias
358.botsalgn:  -O3   -openmp   -ipo    -xSSE4.2   -fno-alias   -ansi-alias
359.botsspar:  -O3   -openmp   -ipo    -xAVX   -fno-alias   -ansi-alias
367.imagick:  -O2   -openmp   -ipo    -xAVX   -ansi-alias
372.smithwa:  -O2   -openmp   -ipo    -xSSE4.2   -fno-alias   -opt-streaming-stores always   -opt-malloc-options=1   -ansi-alias

C++ benchmarks:

 -O3   -openmp   -ipo    -xAVX   -fno-alias   -ansi-alias

Fortran benchmarks:

350.md:  -O2   -openmp   -ipo    -xAVX   -fno-alias   -opt-malloc-options=1   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
351.bwaves:  -O3   -openmp   -ipo    -xAVX   -fno-alias   -fp-model fast=2   -no-prec-div   -no-prec-sqrt   -align array64byte
357.bt331:  Same as 351.bwaves
360.ilbdc:  -O3   -openmp   -ipo    -xAVX   -opt-malloc-options=1   -align array64byte
362.fma3d:  -O3   -openmp   -ipo    -xAVX   -fno-alias   -align array64byte
363.swim:  -O3   -openmp   -ipo    -xSSE4.2   -fno-alias   -opt-streaming-stores always   -opt-malloc-options=3   -align array64byte
370.mgrid331:  -O2   -openmp   -ipo    -xSSE4.2   -fno-alias   -opt-malloc-options=3   -align array64byte
371.applu331:  -O2   -openmp   -ipo    -xAVX   -align array64byte

The flags file that was used to format this result can be browsed at
http://www.spec.org/omp2012/flags/hp-ic15.0-linux64.v1.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/omp2012/flags/hp-ic15.0-linux64.v1.xml.
