SPECjbb2015 Report for jbb2015-20250709-01622 : 1103410 max-jOPS ; 704876 critical-jOPS

SUT Description

Hardware hw_1
Name	meta brain i24G8
Vendor	IEIT Systems Co., Ltd.
Vendor URL	https://www.ieisystem.com/
Available	Jul-2025
Model	meta brain i24G8
Form Factor	2U
CPU Name	Intel Xeon 6980P
CPU Characteristics	128 Core, 2.00 GHz, 504 MB L3 Cache (Turbo Boost Technology up to 3.90 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	256
Cores Per Chip	128
Threads Per System	512
Threads Per Core	2
Version	03.05.00
CPU Frequency (MHz)	2000
Primary Cache	64 KB(I)+48 KB(D)on chip per core
Secondary Cache	2 MB (I+D) on chip per core
Tertiary Cache	504 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 4TB NVMe SSD
File System	xfs
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	24 x 64 GB 2Rx4 PC5-88/64B-H
# and type of Network Interface Cards (NICs)	1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)	4 x 2700W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP6
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	6.4.0-150600.21-default
Available	Jun-2024
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 24.0.1
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 24.0.1
Available	Apr-2025
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Tuning Power Performance Tuning=BIOS Controls EPB ENERGY_PERF_BIAS_CFG mode=Performance
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(12), jvm_TxInjector_1(12)
OS Image Description	os_1
Tuning	ulimit -n 131072 tuned-adm profile throughput-performance echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /sys/kernel/debug/sched/latency_ns echo 1000 > /sys/kernel/debug/sched/migration_cost_ns echo 28000000 > /sys/kernel/debug/sched/min_granularity_ns echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /sys/kernel/debug/sched/tunable_scaling echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 40000 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages echo 600 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=95 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1G -XX:MaxGCPauseMillis=500 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -XX:ParallelGCThreads=42
Tuning	numactl used to affinitize two Backend JVMs to one NUMA node Group1:numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc Group3:numactl --cpunodebind=2 --localalloc Group4:numactl --cpunodebind=3 --localalloc Group5:numactl --cpunodebind=4 --localalloc Group6:numactl --cpunodebind=5 --localalloc Group7:numactl --cpunodebind=0 --localalloc Group8:numactl --cpunodebind=1 --localalloc Group9:numactl --cpunodebind=2 --localalloc Group10:numactl --cpunodebind=3 --localalloc Group11:numactl --cpunodebind=4 --localalloc Group12:numactl --cpunodebind=5 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to affinitize two TxInjector JVMs to one NUMA node Group1:numactl --cpunodebind=0 --localalloc Group2:numactl --cpunodebind=1 --localalloc Group3:numactl --cpunodebind=2 --localalloc Group4:numactl --cpunodebind=3 --localalloc Group5:numactl --cpunodebind=4 --localalloc Group6:numactl --cpunodebind=5 --localalloc Group7:numactl --cpunodebind=0 --localalloc Group8:numactl --cpunodebind=1 --localalloc Group9:numactl --cpunodebind=2 --localalloc Group10:numactl --cpunodebind=3 --localalloc Group11:numactl --cpunodebind=4 --localalloc Group12:numactl --cpunodebind=5 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	1091150	1103410	1115670	1127930	1140190

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	484274	619135	766257	852078	888858	704876

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	12260 / 24520	- / 12260	- / 12260	- / 12260	- / 12260	- / 12260
1000us	894988 / 907248	49040 / 61301	24520 / 36780	12260 / 24520	- / 12260	- / 12260
5000us	1005329 / 1017589	894988 / 907248	662046 / 649786	563965 / 576225	392324 / 404584	- / 12260
10000us	1017589 / 1029849	944028 / 956289	809167 / 821427	747867 / 760127	478144 / 490404	- / 12260
25000us	1042109 / 1054369	980809 / 993069	870468 / 882728	821427 / 833687	613005 / 625266	- / 12260
50000us	1042109 / 1054369	993069 / 1005329	919508 / 931768	882728 / 894988	760127 / 772387	367803 / 61301
75000us	1054369 / 1066630	1017589 / 1029849	944028 / 956289	907248 / 919508	845948 / 858208	453624 / 465884
100000us	1054369 / 1066630	1017589 / 1029849	956289 / 968549	944028 / 956289	882728 / 894988	576225 / 527185
200000us	1078890 / 1091150	1042109 / 1054369	993069 / 1005329	968549 / 980809	956289 / 968549	845948 / 858208
500000us	1103410 / -	1078890 / 1091150	1042109 / 1054369	1042109 / 1054369	1017589 / 1029849	956289 / 968549
1000000us	1103410 / -	1103410 / -	1091150 / 1103410	1078890 / 1091150	1066630 / 1078890	1029849 / 1017589

Number of probes

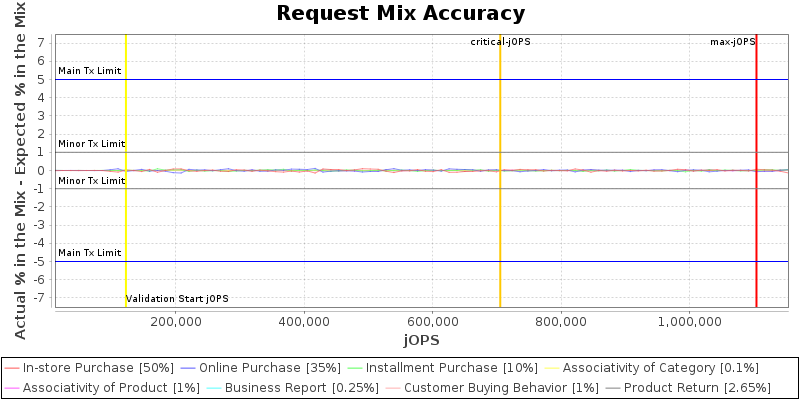

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

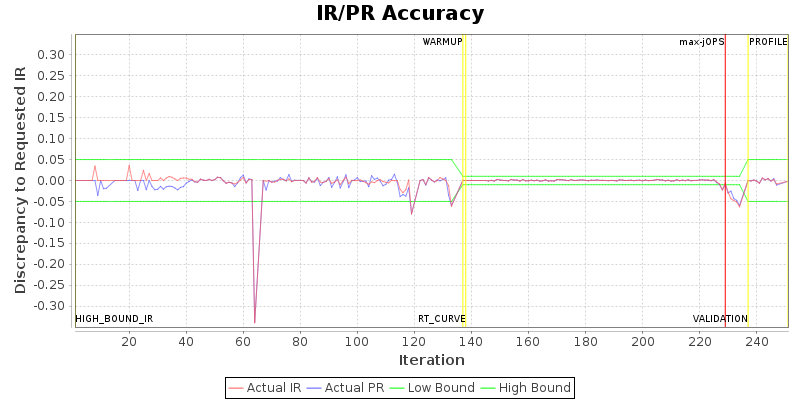

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	512	{Tier1=336, Tier2=15, Tier3=36}
specjbb.group.count	1	12
specjbb.mapreducer.pool.size	512	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 1226011 IR

High-bound (settled) is 1159247 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

IEIT Systems Co., Ltd. meta brain i24G8	1103410 SPECjbb2015-MultiJVM max-jOPS 704876 SPECjbb2015-MultiJVM critical-jOPS
Tested by: IEIT Systems Co., Ltd.	Test Sponsor: IEIT Systems Co., Ltd.	Test location: Jinan, China	Test date: Jun 24, 2025
SPEC license #: 3358	Hardware Availability: Jul-2025	Software Availability: Apr-2025	Publication: Thu Jul 24 15:43:07 EDT 2025
