SPEC® CINT2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC M12-2S

CPU2006 license: 19 Test date: Mar-2017
Test sponsor: Fujitsu Hardware Availability: Apr-2017
Tested by: Fujitsu Software Availability: Jul-2017

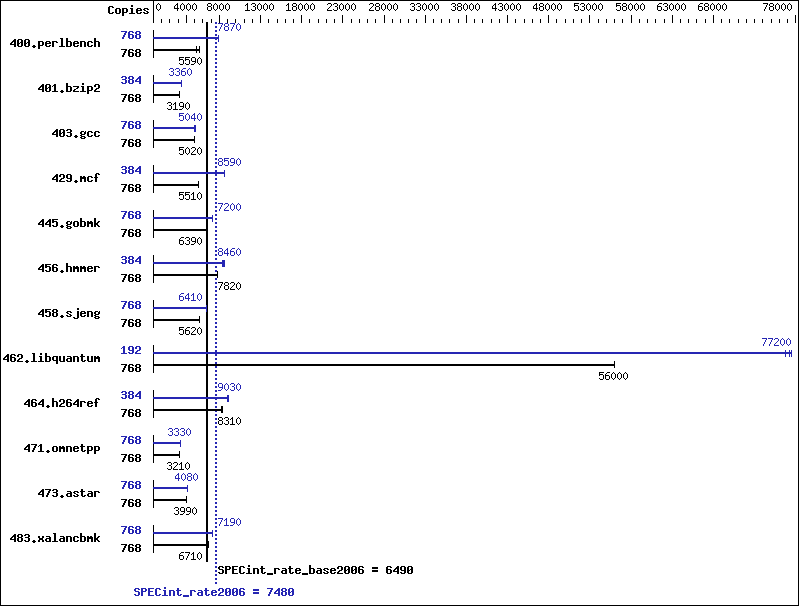

Benchmark results graph
Hardware
CPU Name: SPARC64 XII
CPU Characteristics: High Speed Mode up to 4.35 GHz
CPU MHz: 4250
FPU: Integrated
CPU(s) enabled: 96 cores, 8 chips, 12 cores/chip, 8 threads/core
CPU(s) orderable: 1 to 16 BBs; each BB contains 1 or 2 CPU chips;
the number of orderable total cores is 2, 3, 4,
.. 384
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 32 MB I+D on chip per chip
Other Cache: None
Memory: 4 TB (128 x 32 GB 2Rx4 PC4-2400T-R)
Disk Subsystem: 1 x 600 GB 10K RPM SAS (for system disk)
Other Hardware: None
Software
Operating System: Oracle Solaris 11.3 (with June 2017 SRU)
Compiler: C/C++: Version 12.6 of Oracle Developer Studio
Auto Parallel: No
File System: tmpfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 768 1430 5250 1342 5590 1343 5590 768 953   7880 955   7860 953   7870
401.bzip2 768 2314 3200 2327 3190 2325 3190 384 1103   3360 1104   3360 1104   3360
403.gcc 768 1229 5030 1231 5020 1234 5010 768 1213   5100 1228   5040 1234   5010
429.mcf 768 1270 5510 1269 5520 1285 5450 384 408   8590 408   8590 406   8620
445.gobmk 768 1261 6390 1263 6380 1259 6400 768 1120   7200 1119   7200 1123   7170
456.hmmer 768 915 7830 916 7820 916 7820 384 426   8410 424   8460 416   8610
458.sjeng 768 1657 5610 1654 5620 1653 5620 768 1452   6400 1449   6410 1445   6430
462.libquantum 768 284 56000 284 56000 284 56000 192 51.3 77500 51.5 77200 51.8 76700
464.h264ref 768 2042 8320 2044 8310 2045 8310 384 941   9030 941   9030 935   9090
471.omnetpp 768 1494 3210 1494 3210 1494 3210 768 1444   3330 1440   3330 1440   3330
473.astar 768 1353 3990 1351 3990 1350 3990 768 1320   4080 1315   4100 1322   4080
483.xalancbmk 768 789 6710 789 6710 793 6680 768 736   7200 744   7120 737   7190

Submit Notes

 Processes were assigned to specific processors using 'pbind' commands.
 The config file option 'submit' was used, along with a list of
 processors in the 'BIND' variable, to generate the pbind commands.
 (For details, please see the config file.)

Operating System Notes

 Shell Environments:
    ulimit -s 131072 was used to limit the space consumed by the stack
    (and therefore make more space available to the heap).

    The "Logical Domains Manager" service was turned off using the command "svcadm disable ldmd".

 System Tunables:
 (/etc/system parameters)
    autoup = 86400
       Causes pages older than the listed number of seconds to be written by fsflush.
    doiflush = 0
       Controls whether file system metadata syncs will be executed during fsflush invocations.
    dopageflush = 0
       Controls whether memory is examined for modified pages during fsflush invocations.
    zfs:zfs_arc_max=1073741824
       Determines the maximum size of the ZFS Adaptive Replacement Cache (ARC).

Platform Notes

Firmware Settings:
(XSCF operations)
   Set High Speed Mode via XSCF command "sethsmode -s on".

 Sysinfo program /export/cpu2006/config/sysinfo
 Revision 6993 of 2015-11-06 (c9426fd40261140bb4c02f7d35768596)
 running on H2S-257-D0 Mon Mar 13 06:46:31 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo
    SPARC64-XII (chipid 0, clock 4250 MHz)
    SPARC64-XII (chipid 1, clock 4250 MHz)
    SPARC64-XII (chipid 2, clock 4250 MHz)
    SPARC64-XII (chipid 3, clock 4250 MHz)
    SPARC64-XII (chipid 4, clock 4250 MHz)
    SPARC64-XII (chipid 5, clock 4250 MHz)
    SPARC64-XII (chipid 6, clock 4250 MHz)
    SPARC64-XII (chipid 7, clock 4250 MHz)
    8 chips
    768 threads
    4250 MHz

 From kstat:       96 cores

 From prtconf: 4187136 Megabytes

 /etc/release:
      Oracle Solaris 11.3 SPARC
 uname -a:
    SunOS H2S-257-D0 5.11 11.3 sun4v sparc sun4v

 SPEC is set to: /export/cpu2006

 disk: df -h  /export/cpu2006
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export           547G    27G       242G    11%    /export

 (End of data from sysinfo program)

General Notes

 The Building Block (BB) is just a Fujitsu SPARC M12-2S that is the basic
 unit to be expanded as if stacking up children's blocks.

 File System:
  tmpfs: output_root was used to put run directories in /tmp/cpu2006
  zfs: operating system

 SPEC CPU2006 benchmark:
  Updated with runspec --update

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -std=c99   -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=std

C++ benchmarks:

 -m32   -fast   -xtarget=sparc64xii   -xipo=2   -xpagesize=4M   -xsegment_align=4M   -xthroughput   -xalias_level=compatible   -library=stlport4   -lfast

Base Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -xO4   -Wc,-Qiselect-funcalign=4   -xthroughput=no   -lfast
401.bzip2:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xalias_level=strong   -xprefetch=no%auto   -Wc,-Qiselect-funcalign=4   -Wc,-Qicache-chbab=1   -xinline_param=max_inst_hard:1000,max_inst_soft:500,max_growth:60   -lfast
403.gcc:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xO4   -xipo=2   -xprefetch=no%auto   -Wc,-Qiselect-funcalign=64   -xcache=32/128/4/4:256/128/8/4:8192/128/16/24   -xalias_level=layout
429.mcf:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xipo=2   -xalias_level=std   -xprefetch=latx:0.2   -W2,-Asac   -Wc,-Qiselect-funcalign=64
445.gobmk:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xO4   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -Wc,-Qiselect-funcalign=64   -Wc,-Qgsched-T=4
456.hmmer:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xipo=1   -xunroll=8   -Wc,-Qms_pipe-pref   -Wc,-Qiselect-funcalign=4   -xcache=32/128/4/4:256/128/8/4:8192/128/16/48
458.sjeng:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xO4   -xipo=2   -xalias_level=std   -xunroll=4   -Wc,-Qiselect-funcalign=4   -W2,-Afully_unroll:always=on   -xprefetch=latx:0.6   -xcheck=%none
462.libquantum:  -std=c99   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -m64   -xtarget=sparc64xplus   -xipo=2   -xcache=32/128/4/4:256/128/8/4:8192/128/16/24   -xinline_param=level:1   -Wc,-Qiselect-funcalign=4   -xalias_level=layout   -xprefetch=latx:0.2
464.h264ref:  -std=c99   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xtarget=sparc64xplus   -xipo=1   -Wc,-Qiselect-funcalign=4   -xthroughput=no   -xalias_level=layout   -xprefetch=latx:0.2   -xcheck=%none

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xipo=1   -xalias_level=compatible   -xunroll=2   -xprefetch_level=3   -W2,-Asac   -xthroughput=no   -lfast
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xtarget=sparc64xplus   -xalias_level=compatible   -xipo=2   -xunroll=6   -xrestrict=%source   -Wc,-Qiselect-funcalign=64   -Wc,-Qgsched-T=4   -xprefetch=latx:0.3   -lfast
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m32   -fast   -xtarget=sparc64xii   -xpagesize=256M   -xsegment_align=256M   -xthroughput   -xipo=2   -xalias_level=compatible   -xdepend   -xprefetch_level=3   -xprefetch=latx:0.4   -library=stlport4   -W2,-Asac   -Wc,-Qiselect-funcalign=64   -features=no%except   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=8

C++ benchmarks:

 -xjobs=8

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.html,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2S.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Developer-Studio12.6.xml,
http://www.spec.org/cpu2006/flags/Fujitsu-M12-2S.xml.
