SPEC® CINT2006 Result

Copyright 2006-2017 Standard Performance Evaluation Corporation

Huawei

Kunlun 9008 (Intel Xeon E7-8860 v3)

CPU2006 license: 3175 Test date: Feb-2017
Test sponsor: Huawei Hardware Availability: Jan-2016
Tested by: Huawei Software Availability: Sep-2014

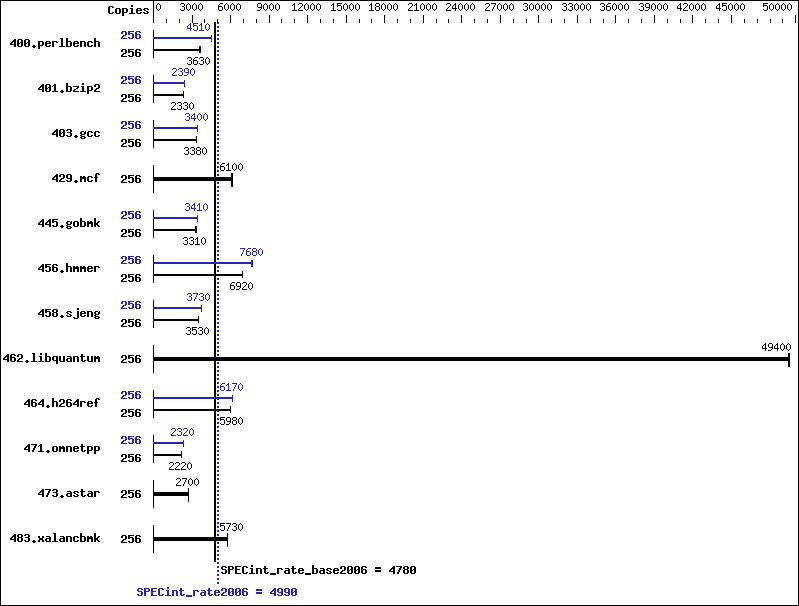

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-8860 v3
CPU Characteristics: Intel Turbo Boost Technology up to 3.20 GHz
CPU MHz: 2200
FPU: Integrated
CPU(s) enabled: 128 cores, 8 chips, 16 cores/chip, 2 threads/core
CPU(s) orderable: 4,8 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 40 MB I+D on chip per chip
Other Cache: None
Memory: 1 TB (64 x 16 GB 2Rx4 PC4-2133P-R,
running at 1600 MHz)
Disk Subsystem: 2 x 600 GB SAS, 10K RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 7.1
(Maipo)
3.10.0-229.el7.x86_64
Compiler: C/C++: Version 16.0.0.101 of Intel C++ Studio XE
for Linux
Auto Parallel: No
File System: xfs
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.2

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 256 694 3600 689 3630 688 3640 256 555 4510 554 4510 557 4490
401.bzip2 256 1063 2320 1062 2330 1061 2330 256 1032 2390 1032 2390 1030 2400
403.gcc 256 612 3370 609 3380 609 3390 256 606 3400 606 3400 604 3410
429.mcf 256 381 6130 384 6080 383 6100 256 381 6130 384 6080 383 6100
445.gobmk 256 813 3300 810 3320 812 3310 256 786 3420 787 3410 788 3410
456.hmmer 256 346 6910 345 6920 344 6940 256 311 7690 311 7680 313 7630
458.sjeng 256 877 3530 876 3540 879 3520 256 829 3740 829 3730 829 3730
462.libquantum 256 107 49500 107 49400 107 49400 256 107 49500 107 49400 107 49400
464.h264ref 256 939 6030 947 5980 947 5980 256 918 6170 916 6180 921 6150
471.omnetpp 256 721 2220 722 2220 722 2220 256 688 2320 689 2320 689 2320
473.astar 256 665 2700 664 2710 665 2700 256 665 2700 664 2710 665 2700
483.xalancbmk 256 308 5730 308 5740 309 5720 256 308 5730 308 5740 309 5720

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"
 Turbo mode set with:
 	cpupower -c all frequency-set -g performance

Platform Notes

 BIOS configuration:
 Set Power Efficiency Mode to Performance
 Set Lock_step to disabled
 Baseboard Management Controller used to adjust the fan speed to 100%
 Set C-State to C0/C1
 Sysinfo program /home/spec/config/sysinfo.rev6914
 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1
 running on KUNLUN9008 Mon Feb 13 22:59:47 2017

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E7-8860 v3 @ 2.20GHz
       8 "physical id"s (chips)
       256 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 16
       siblings  : 32
       physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
       physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
       physical 2: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
       physical 3: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
       physical 4: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
       physical 5: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
       physical 6: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
       physical 7: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
    cache size : 40960 KB

 From /proc/meminfo
    MemTotal:       1055991152 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 From /etc/*release* /etc/*version*
    os-release:
       NAME="Red Hat Enterprise Linux Server"
       VERSION="7.1 (Maipo)"
       ID="rhel"
       ID_LIKE="fedora"
       VERSION_ID="7.1"
       PRETTY_NAME="Red Hat Enterprise Linux Server 7.1 (Maipo)"
       ANSI_COLOR="0;31"
       CPE_NAME="cpe:/o:redhat:enterprise_linux:7.1:GA:server"
    redhat-release: Red Hat Enterprise Linux Server release 7.1 (Maipo)
    system-release: Red Hat Enterprise Linux Server release 7.1 (Maipo)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:7.1:ga:server

 uname -a:
    Linux KUNLUN9008 3.10.0-229.el7.x86_64 #1 SMP Thu Jan 29 18:37:38 EST 2015
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Feb 13 22:02

 SPEC is set to: /home/spec
    Filesystem            Type  Size  Used Avail Use% Mounted on
    /dev/mapper/rhel-home xfs   1.1T  342G  720G  33% /home
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS American Megatrends Inc. BLXSV113 11/28/2016
   Memory:
    1x Hynix HMA42GR7MFR4N-TFTD 16 GB 2 rank 2133 MHz, configured at 1600 MHz
    63x Micron 36ASF2G72PZ-2G1A2 16 GB 2 rank 2133 MHz, configured at 1600 MHz
    128x NO DIMM NO DIMM

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/home/spec/libs/32:/home/spec/libs/64:/home/spec/sh"

 Binaries compiled on a system with 1x Intel Core i5-4670K CPU + 32GB
 memory using RedHat EL 7.1
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

C++ benchmarks:

 icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

Base Portability Flags

400.perlbench:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX_IA32
401.bzip2:  -D_FILE_OFFSET_BITS=64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -D_FILE_OFFSET_BITS=64
458.sjeng:  -D_FILE_OFFSET_BITS=64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -opt-mem-layout-trans=3

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -opt-mem-layout-trans=3   -Wl,-z,muldefs   -L/sh -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin
400.perlbench:  icc -m64
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64

C++ benchmarks:

 icpc -m32 -L/opt/intel/compilers_and_libraries_2016/linux/compiler/lib/ia32_lin

Peak Portability Flags

400.perlbench:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LP64
403.gcc:  -D_FILE_OFFSET_BITS=64
429.mcf:  -D_FILE_OFFSET_BITS=64
445.gobmk:  -D_FILE_OFFSET_BITS=64
456.hmmer:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LP64
458.sjeng:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LP64
462.libquantum:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX
464.h264ref:  -D_FILE_OFFSET_BITS=64
471.omnetpp:  -D_FILE_OFFSET_BITS=64
473.astar:  -D_FILE_OFFSET_BITS=64
483.xalancbmk:  -D_FILE_OFFSET_BITS=64   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -auto-ilp32
401.bzip2:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32   -ansi-alias
403.gcc:  -xCORE-AVX2   -ipo   -O3   -no-prec-div
429.mcf:  basepeak = yes
445.gobmk:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -prof-use(pass 2)   -par-num-threads=1(pass 1)   -ansi-alias   -opt-mem-layout-trans=3
456.hmmer:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32
458.sjeng:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll4   -auto-ilp32
462.libquantum:  basepeak = yes
464.h264ref:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xCORE-AVX2(pass 2)   -prof-gen:threadsafe(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -par-num-threads=1(pass 1)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/sh -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.html,
http://www.spec.org/cpu2006/flags/Huawei-Platform-Settings-V1.2-HSW-RevG.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic16.0-official-linux64.xml,
http://www.spec.org/cpu2006/flags/Huawei-Platform-Settings-V1.2-HSW-RevG.xml.
