SPEC® CFP2006 Result

Copyright 2006-2015 Standard Performance Evaluation Corporation

Lenovo Group Limited

Lenovo ThinkServer RD550 (Intel Xeon E5-2690 v3,
2.60 GHz)

SPECfp®2006 = 113

CPU2006 license: 9017 Test date: Oct-2014
Test sponsor: Lenovo Group Limited Hardware Availability: Sep-2014
Tested by: Lenovo Group Limited Software Availability: Jan-2014

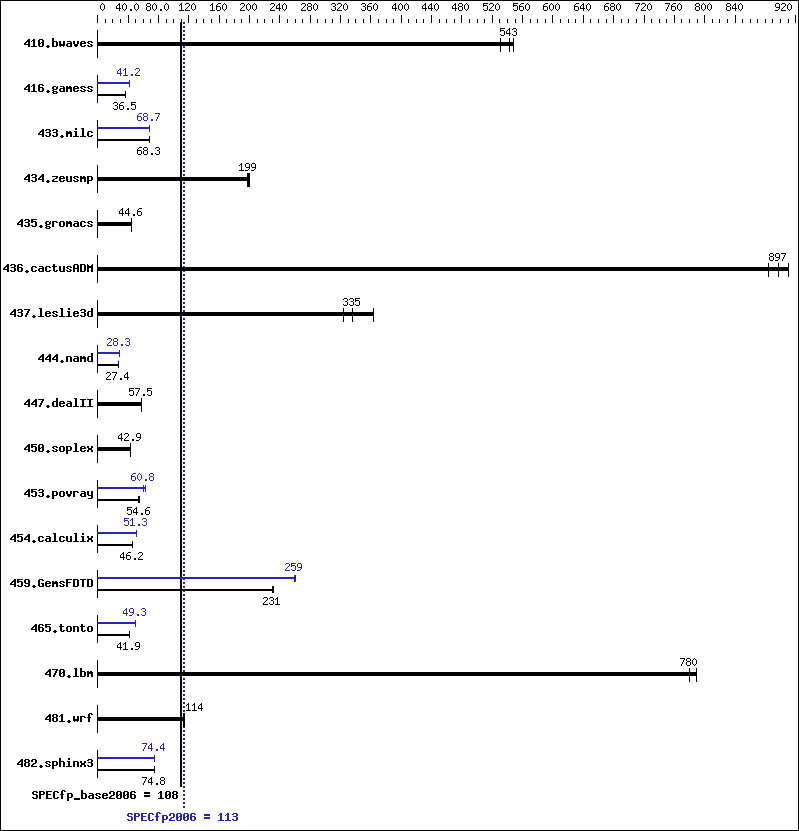

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2690 v3
CPU Characteristics: Intel Turbo Boost Technology up to 3.50 GHz
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 24 cores, 2 chips, 12 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R)
Disk Subsystem: 1 x 800 GB SATA SSD
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.5
(Santiago)
2.6.32-431.el6.x86_64
Compiler: C/C++: Version 14.0.0.080 of Intel C++ Studio XE
for Linux;
Fortran: Version 14.0.0.080 of Intel Fortran
Studio XE for Linux
Auto Parallel: Yes
File System: ext4
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 24.8 547   25.6 530   25.0 543   24.8 547   25.6 530   25.0 543
416.gamess 534   36.7 537   36.5 536   36.5 474   41.3 475   41.2 475   41.2
433.milc 134   68.3 134   68.3 134   68.5 134   68.4 134   68.7 134   68.7
434.zeusmp 45.8 199   46.2 197   45.4 200   45.8 199   46.2 197   45.4 200
435.gromacs 162   44.0 160   44.8 160   44.6 162   44.0 160   44.8 160   44.6
436.cactusADM 13.5 884   13.3 897   13.1 911   13.5 884   13.3 897   13.1 911
437.leslie3d 29.0 324   28.0 335   25.8 364   29.0 324   28.0 335   25.8 364
444.namd 293   27.4 293   27.4 293   27.4 284   28.3 284   28.3 284   28.3
447.dealII 200   57.3 199   57.6 199   57.5 200   57.3 199   57.6 199   57.5
450.soplex 194   42.9 194   42.9 193   43.3 194   42.9 194   42.9 193   43.3
453.povray 95.7 55.6 97.4 54.6 98.4 54.1 87.4 60.8 85.3 62.4 88.0 60.5
454.calculix 179   46.2 178   46.2 178   46.3 161   51.3 161   51.3 161   51.3
459.GemsFDTD 45.8 232   46.0 231   46.0 231   40.7 261   40.9 259   40.9 259
465.tonto 235   41.8 235   41.9 233   42.2 200   49.2 200   49.3 200   49.3
470.lbm 17.6 780   17.6 780   17.4 789   17.6 780   17.6 780   17.4 789
481.wrf 98.0 114   98.4 113   98.2 114   98.0 114   98.4 113   98.2 114
482.sphinx3 259   75.2 261   74.8 260   74.8 263   74.2 262   74.4 261   74.7

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

BIOS configuration:
Cluster On Die set to Disabled
Early Snoop set to Disabled
Performance Profile set to Custom
C1E Support set to Disabled
Core C3 set to Disabled
Core C6 set to Disabled
Thermal Profile set to High Fan Speed
Memory Power Savings set to Disabled
 Sysinfo program /usr/cpu2006/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191
 running on RD550 Wed Oct 29 20:34:04 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2690 v3 @ 2.60GHz
       2 "physical id"s (chips)
       48 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 12
       siblings  : 24
       physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13
       physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13
    cache size : 30720 KB

 From /proc/meminfo
    MemTotal:       264411660 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.5 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux RD550 2.6.32-431.el6.x86_64 #1 SMP Sun Nov 10 22:19:54 EST 2013 x86_64
    x86_64 x86_64 GNU/Linux

 run-level 3 Oct 29 20:32

 SPEC is set to: /usr/cpu2006
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/sda2      ext4  730G   12G  682G   2% /

 Additional information from dmidecode:
   BIOS LENOVO PB1TS110 10/06/2014
   Memory:
    16x   16 GB
    1x Hynix Semiconductor HMA42GR7MFR4N-TF 16 GB 2133 MHz 2 rank
    15x Hynix Semiconductor HMA42GR7MFR4N-TFTD 16 GB 2133 MHz 2 rank
    8x NO DIMM NO DIMM

 (End of data from sysinfo program)
RD550 support 4 channels and 12 DIMMs per processor, total 8 channels and
24 DIMMs. 16 DIMM slots installed with 16 GB DIMM for this run.

General Notes

Environment variables set by runspec before the start of the run:
KMP_AFFINITY = "granularity=fine,compact,1,0"
LD_LIBRARY_PATH = "/usr/cpu2006/libs/32:/usr/cpu2006/libs/64:/usr/cpu2006/sh"
OMP_NUM_THREADS = "24"

 Binaries compiled on a system with 1x Core i7-860 CPU + 8GB
 memory using RedHat EL 6.4
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -ansi-alias

C++ benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -opt-prefetch   -ansi-alias

Fortran benchmarks:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch

Benchmarks using both Fortran and C:

 -xCORE-AVX2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -ansi-alias

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -auto-ilp32   -ansi-alias
470.lbm:  basepeak = yes
482.sphinx3:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -unroll2   -ansi-alias   -parallel

C++ benchmarks:

444.namd:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -inline-level=0   -opt-prefetch   -parallel
465.tonto:  -xCORE-AVX2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -inline-calloc   -opt-malloc-options=3   -auto   -unroll4

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  -xCORE-AVX2   -ipo   -O3   -no-prec-div   -auto-ilp32   -ansi-alias
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.html,
http://www.spec.org/cpu2006/flags/Lenovo-Platform-Settings-V1.2-RD550-revA.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.xml,
http://www.spec.org/cpu2006/flags/Lenovo-Platform-Settings-V1.2-RD550-revA.xml.
