SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro (Test Sponsor: Advanced Micro Devices)

Supermicro A+ Server 2042G-6RF,
AMD Opteron 6262 HE

CPU2006 license: 49 Test date: Sep-2011
Test sponsor: Advanced Micro Devices Hardware Availability: Nov-2011
Tested by: Advanced Micro Devices Software Availability: Jul-2011

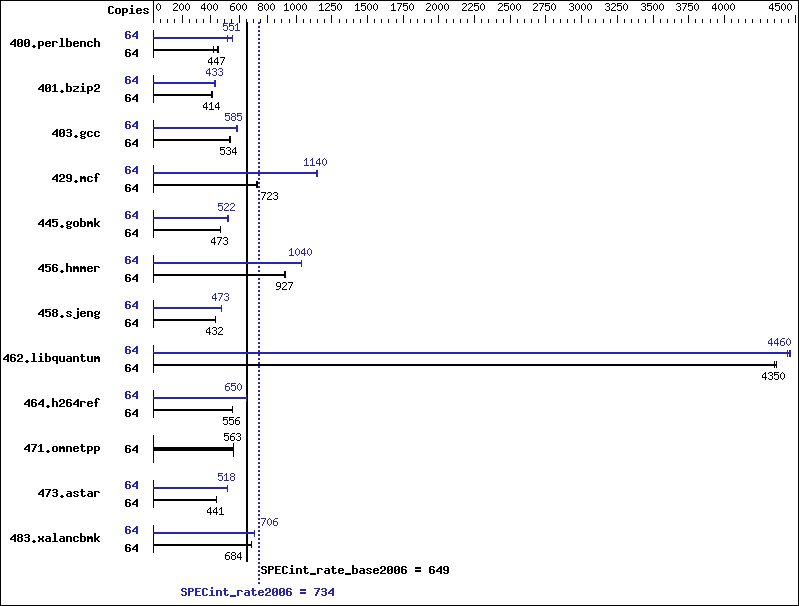

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6262 HE
CPU Characteristics: AMD Turbo CORE technology up to 2.90 GHz
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 64 cores, 4 chips, 16 cores/chip
CPU(s) orderable: 2,4 chips
Primary Cache: 512 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory: 256 GB (32 x 8 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem: 1 x 500 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.1,
Kernel 2.6.32-131.0.15.el6.x86_64
Compiler: C/C++: Version 4.2.5.2 of x86 Open64 Compiler
Suite (from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 10.0 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 64 1486 421 1398 447 1382 452 64 1207 518 1135 551 1132 552
401.bzip2 64 1529 404 1491 414 1494 414 64 1435 430 1427 433 1426 433
403.gcc 64 965 534 960 536 968 532 64 887 581 876 588 880 585
429.mcf 64 798 731 807 723 809 722 64 509 1150 510 1140 511 1140
445.gobmk 64 1420 473 1420 473 1423 472 64 1289 521 1287 522 1285 522
456.hmmer 64 650 918 644 928 644 927 64 575 1040 574 1040 574 1040
458.sjeng 64 1792 432 1796 431 1793 432 64 1637 473 1637 473 1636 473
462.libquantum 64 304 4370 305 4350 305 4350 64 299 4440 297 4470 298 4460
464.h264ref 64 2546 556 2560 553 2545 556 64 2179 650 2180 650 2183 649
471.omnetpp 64 710 563 710 563 711 563 64 710 563 710 563 711 563
473.astar 64 1023 439 1019 441 1019 441 64 866 519 867 518 867 518
483.xalancbmk 64 671 658 645 685 646 684 64 626 706 626 705 626 706

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot paramenter in /boot/grub/menu.lst
Set kernel/randomize_va_space=0 in /etc/sysctl.conf

Set vm/nr_hugepages=57344 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/root/work/cpu2006v1.1/amd1104-rate-libs-revA/32:/root/work/cpu2006v1.1/amd1104-rate-libs-revA/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6276 chips + 128GB Memory using RHEL 6.1

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -march=bdver1   -Ofast   -CG:local_sched_alg=1   -INLINE:aggressive=on   -IPA:plimit=8000   -IPA:small_pu=100   -HP:bd=2m:heap=2m   -mso   -LNO:prefetch=2

C++ benchmarks:

 -march=bdver1   -Ofast   -m32   -INLINE:aggressive=on   -CG:cmp_peep=on   -D__OPEN64_FAST_SET   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=2   -LNO:opt=0   -IPA:plimit=20000   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -WOPT:if_conv=0   -WOPT:sib=on   -CG:local_sched_alg=1   -CG:unroll_fb_req=on   -CG:movext_icmp=off   -HP:bd=2m:heap=2m
401.bzip2:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=2   -LNO:pf2=0   -OPT:alias=disjoint   -OPT:goto=off   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m
403.gcc:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:trip_count=256   -CG:cmp_peep=on   -CG:pre_minreg_level=2   -m32   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -IPA:small_pu=200   -WOPT:sib=on
429.mcf:  -march=bdver1   -O3   -OPT:unroll_times_max=5   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -GRA:prioritize_by_density=on   -m32   -HP:bdt=2m:heap=2m   -mso
445.gobmk:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:unroll_size=256   -OPT:unroll_times_max=8   -OPT:keep_ext=on   -IPA:plimit=750   -IPA:min_hotness=300   -IPA:pu_reorder=1   -LNO:ignore_feedback=off   -WOPT:if_conv=2   -HP:bd=2m:heap=2m
456.hmmer:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=2   -OPT:alias=disjoint   -OPT:unroll_times_max=16   -OPT:unroll_size=512   -OPT:unroll_level=2   -OPT:keep_ext=on   -CG:cflow=0   -CG:cmp_peep=on   -CG:pre_local_sched=off   -HP:bdt=2m:heap=2m
458.sjeng:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:ptr_load_use=0   -CG:divrem_opt=on   -CG:movext_icmp=off   -CG:locs_best=on   -LNO:full_unroll=10   -IPA:pu_reorder=2   -HP:bd=2m:heap=2m   -WOPT:sib=on
462.libquantum:  -march=bdver1   -Ofast   -mso   -OPT:unroll_size=512   -OPT:unroll_times_max=16   -LNO:prefetch=2   -LNO:prefetch_ahead=4   -LNO:pf2=0   -CG:local_sched_alg=1   -INLINE:aggressive=on   -IPA:plimit=15000   -IPA:small_pu=100   -HP:bdt=2m:heap=2m,limit=300
464.h264ref:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:unroll_size=256   -OPT:unroll_times_max=2   -IPA:plimit=20000   -OPT:alias=disjoint   -CG:ptr_load_use=0   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -TENV:frame_pointer=off   -WOPT:if_conv=0   -WOPT:sib=on   -CG:divrem_opt=on   -GRA:optimize_boundary=on   -OPT:alias=disjoint   -INLINE:aggressive=on   -IPA:small_pu=3000   -IPA:plimit=3000   -m32   -HP:bdt=2m:heap=2m
483.xalancbmk:  -march=bdver1   -Ofast   -LNO:prefetch=2   -OPT:unroll_size=512   -OPT:unroll_times_max=8   -D__OPEN64_FAST_SET   -INLINE:aggressive=on   -m32   -CG:cmp_peep=on   -CG:local_sched=off   -GRA:unspill=on   -TENV:frame_pointer=off   -fno-emit-exceptions   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-rate-revA.html,
http://www.spec.org/cpu2006/flags/amd1104-platform-rate-revA.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-rate-revA.xml,
http://www.spec.org/cpu2006/flags/amd1104-platform-rate-revA.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Thu Jul 24 00:56:41 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 14 November 2011.
