SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

novascale bullion

CPU2006 license: 20 Test date: Jun-2011
Test sponsor: Bull SAS Hardware Availability: Sep-2011
Tested by: Bull SAS Software Availability: Apr-2011

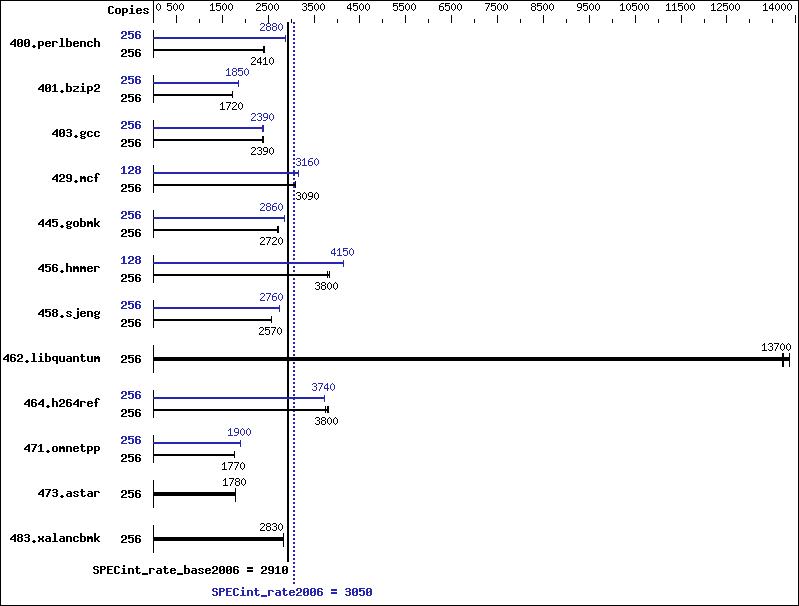

Benchmark results graph
Hardware
CPU Name: Intel Xeon X7560
CPU Characteristics: Intel Turbo Boost Technology up to 2.67 GHz
CPU MHz: 2267
FPU: Integrated
CPU(s) enabled: 128 cores, 16 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable: 2, 4, 8, 12, 16 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory: 1 TB (128 x 8 GB 4Rx8 PC3-8500R-7, ECC)
Disk Subsystem: 1 x 500 GB 7200 RPM SATA
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux 6.0 (x86_64), Kernel
2.6.32-71.el6.x86_64
Compiler: Intel C++ Compiler XE for applications running
on IA-32
Version 12.0.1.116 Build 20101116
Auto Parallel: No
File System: tmpfs
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V9.01

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 256 1038 2410 1041 2400 1039 2410 256 869 2880 869 2880 871 2870
401.bzip2 256 1434 1720 1439 1720 1435 1720 256 1337 1850 1335 1850 1340 1840
403.gcc 256 863 2390 864 2390 863 2390 256 863 2390 863 2390 867 2380
429.mcf 256 755 3090 755 3090 755 3090 128 370 3160 370 3160 369 3160
445.gobmk 256 990 2710 989 2720 988 2720 256 938 2860 937 2870 938 2860
456.hmmer 256 629 3800 631 3790 622 3840 128 288 4150 288 4150 288 4150
458.sjeng 256 1207 2570 1204 2570 1201 2580 256 1124 2760 1124 2760 1125 2750
462.libquantum 256 386 13700 387 13700 383 13900 256 386 13700 387 13700 383 13900
464.h264ref 256 1507 3760 1488 3810 1492 3800 256 1516 3740 1516 3740 1519 3730
471.omnetpp 256 907 1760 905 1770 906 1770 256 840 1910 841 1900 841 1900
473.astar 256 1011 1780 1011 1780 1011 1780 256 1011 1780 1011 1780 1011 1780
483.xalancbmk 256 623 2840 625 2830 626 2820 256 623 2840 625 2830 626 2820

Submit Notes

The config file option 'submit' was used.
 numactl was used to bind copies to the cores
 Tmpfs filesystem set up with:
  mkdir -p /mnt/shm
  mount -t tmpfs -o rw,mpol=interleave tmpfs /mnt/shm/
 The mpol=interleave option sets the NUMA
 memory allocation policy for all files to allocate
 from each node in turn.
Operating system file is ext3
Spec benchmark is copied from hard disk ext3 to tmpfs
Binaries were compiled with huge pages enabled
but huge pages were not used

Platform Notes


System is composed of 4 modules with 32 DIMMs on each module.

General Notes

 The Bull novascale bullion and
 the Bull bullx S6030 models are electronically equivalent.
 The results have been measured on a novascale bullion model.
 Binaries were compiled on RHEL5.5

Base Compiler Invocation

C benchmarks:

 icc -m32

C++ benchmarks:

 icpc -m32

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/smartheap -lsmartheap   -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32
400.perlbench:  icc -m64
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64

C++ benchmarks:

 icpc -m32

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT
401.bzip2:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32   -ansi-alias   -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT
403.gcc:  -xSSE4.2   -ipo   -O3   -no-prec-div   -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT
429.mcf:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -auto-ilp32
445.gobmk:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -prof-use(pass 2)   -ansi-alias   -auto-ilp32
456.hmmer:  -xSSE4.2   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32   -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT
458.sjeng:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -auto-ilp32   -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT
462.libquantum:  basepeak = yes
464.h264ref:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/smartheap -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12.0-linux64-revB.20110705.html,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20110705.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12.0-linux64-revB.20110705.xml,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20110705.xml.
