| CPU2006 license: | 55 | Test date: | May-2011 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Apr-2011 |
| Tested by: | Dell Inc. | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-2830 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.40 GHz |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (32 x 8 GB 4Rx8 PC3L-8500R-7, ECC) |
| Disk Subsystem: | 1 x 146 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

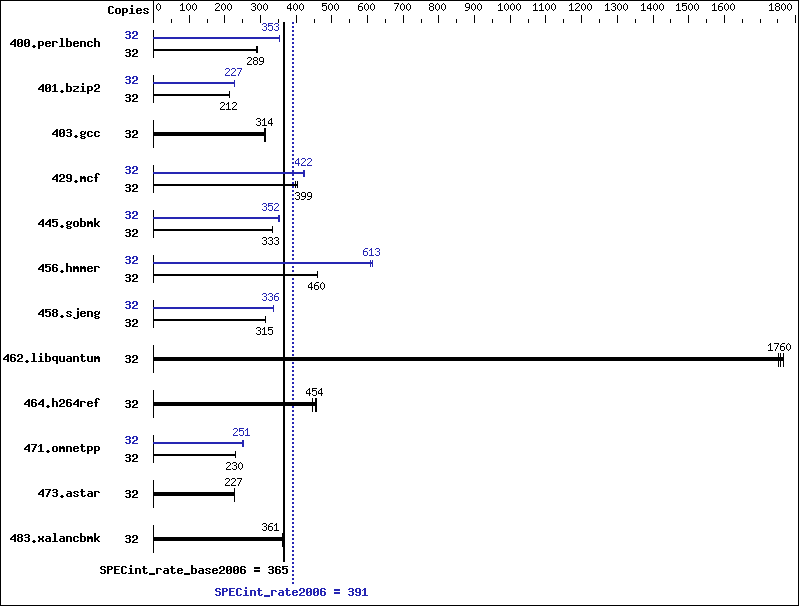

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 32 | 1084 | 288 | 1081 | 289 | 1078 | 290 | 32 | 887 | 352 | 885 | 353 | 886 | 353 |
| 401.bzip2 | 32 | 1459 | 212 | 1458 | 212 | 1459 | 212 | 32 | 1363 | 226 | 1360 | 227 | 1360 | 227 |
| 403.gcc | 32 | 820 | 314 | 819 | 315 | 825 | 312 | 32 | 820 | 314 | 819 | 315 | 825 | 312 |
| 429.mcf | 32 | 724 | 403 | 732 | 399 | 732 | 399 | 32 | 691 | 422 | 696 | 419 | 688 | 424 |
| 445.gobmk | 32 | 1004 | 334 | 1007 | 333 | 1009 | 333 | 32 | 951 | 353 | 956 | 351 | 954 | 352 |
| 456.hmmer | 32 | 649 | 460 | 649 | 460 | 650 | 459 | 32 | 487 | 613 | 490 | 609 | 487 | 613 |
| 458.sjeng | 32 | 1233 | 314 | 1229 | 315 | 1229 | 315 | 32 | 1152 | 336 | 1153 | 336 | 1153 | 336 |
| 462.libquantum | 32 | 377 | 1760 | 378 | 1750 | 375 | 1770 | 32 | 377 | 1760 | 378 | 1750 | 375 | 1770 |
| 464.h264ref | 32 | 1561 | 454 | 1550 | 457 | 1589 | 446 | 32 | 1561 | 454 | 1550 | 457 | 1589 | 446 |
| 471.omnetpp | 32 | 870 | 230 | 869 | 230 | 868 | 230 | 32 | 798 | 251 | 797 | 251 | 801 | 250 |
| 473.astar | 32 | 992 | 226 | 992 | 227 | 990 | 227 | 32 | 992 | 226 | 992 | 227 | 990 | 227 |
| 483.xalancbmk | 32 | 611 | 361 | 610 | 362 | 612 | 361 | 32 | 611 | 361 | 610 | 362 | 612 | 361 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 14400> /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller)
General Notes
Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
