CPU2006 license: | 19 | Test date: | Aug-2010 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Jul-2010 |
Tested by: | Fujitsu | Software Availability: | Jan-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5640 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.93 GHz |
CPU MHz: | 2667 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (6x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC, see add'l detail in notes) |
Disk Subsystem: | 1 x SATA, 160 GB, 5.4 krpm |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
Compiler: | Intel C++ and Fortran Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064, l_cprof_p_11.1.064 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Multi-User Run Level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

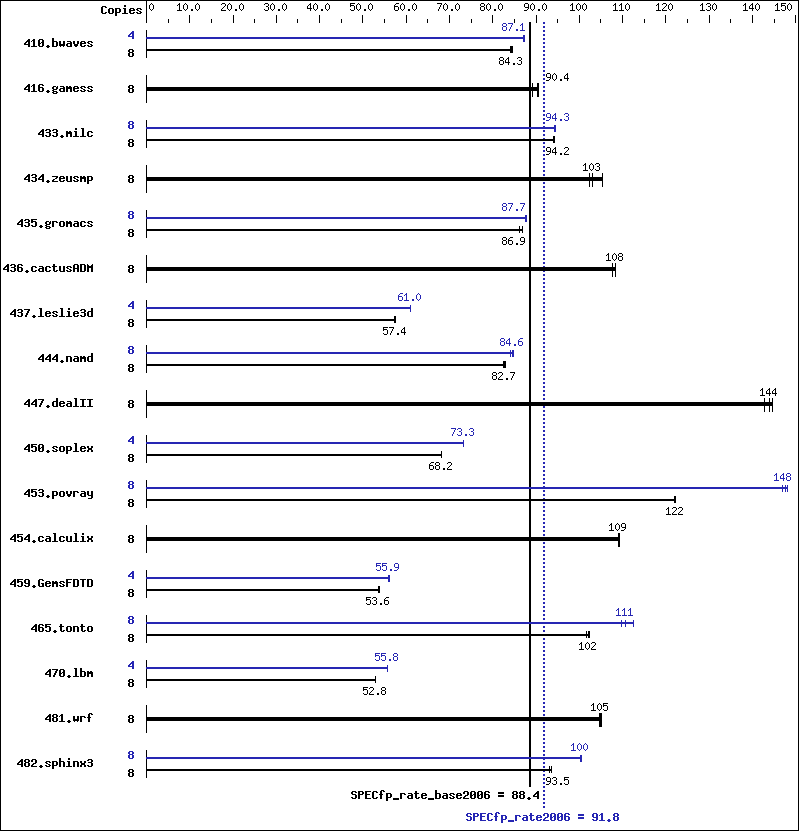

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 1286 | 84.5 | 1292 | 84.1 | 1290 | 84.3 | 4 | 625 | 87.0 | 623 | 87.3 | 624 | 87.1 |
416.gamess | 8 | 1758 | 89.1 | 1730 | 90.5 | 1734 | 90.4 | 8 | 1758 | 89.1 | 1730 | 90.5 | 1734 | 90.4 |
433.milc | 8 | 780 | 94.2 | 780 | 94.2 | 780 | 94.1 | 8 | 777 | 94.5 | 779 | 94.3 | 779 | 94.3 |
434.zeusmp | 8 | 691 | 105 | 711 | 102 | 707 | 103 | 8 | 691 | 105 | 711 | 102 | 707 | 103 |
435.gromacs | 8 | 657 | 87.0 | 658 | 86.9 | 664 | 86.1 | 8 | 651 | 87.7 | 653 | 87.5 | 651 | 87.7 |
436.cactusADM | 8 | 882 | 108 | 888 | 108 | 881 | 108 | 8 | 882 | 108 | 888 | 108 | 881 | 108 |
437.leslie3d | 8 | 1308 | 57.5 | 1311 | 57.3 | 1309 | 57.4 | 4 | 617 | 61.0 | 617 | 61.0 | 617 | 60.9 |
444.namd | 8 | 776 | 82.7 | 773 | 83.0 | 779 | 82.4 | 8 | 762 | 84.2 | 758 | 84.7 | 758 | 84.6 |
447.dealII | 8 | 636 | 144 | 633 | 145 | 641 | 143 | 8 | 636 | 144 | 633 | 145 | 641 | 143 |
450.soplex | 8 | 978 | 68.2 | 978 | 68.2 | 979 | 68.2 | 4 | 455 | 73.3 | 455 | 73.3 | 456 | 73.2 |
453.povray | 8 | 349 | 122 | 348 | 122 | 348 | 122 | 8 | 288 | 148 | 290 | 147 | 288 | 148 |
454.calculix | 8 | 604 | 109 | 605 | 109 | 605 | 109 | 8 | 604 | 109 | 605 | 109 | 605 | 109 |
459.GemsFDTD | 8 | 1578 | 53.8 | 1583 | 53.6 | 1582 | 53.6 | 4 | 756 | 56.1 | 760 | 55.8 | 760 | 55.9 |
465.tonto | 8 | 771 | 102 | 774 | 102 | 770 | 102 | 8 | 711 | 111 | 718 | 110 | 700 | 112 |
470.lbm | 8 | 2080 | 52.8 | 2080 | 52.8 | 2080 | 52.8 | 4 | 986 | 55.7 | 986 | 55.8 | 986 | 55.8 |
481.wrf | 8 | 854 | 105 | 850 | 105 | 851 | 105 | 8 | 854 | 105 | 850 | 105 | 851 | 105 |
482.sphinx3 | 8 | 1666 | 93.6 | 1667 | 93.5 | 1673 | 93.2 | 8 | 1552 | 100 | 1556 | 100 | 1554 | 100 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
The system automatically configures the memory to run at 1066 MHz. BIOS configuration: Data Reuse Optimization = Disable
For information about Fujitsu please visit: http://www.fujitsu.com
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
icc -m64 | |
482.sphinx3: | icc -m32 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -opt-prefetch |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | basepeak = yes |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
