SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Lenovo Group Limited

Lenovo ThinkServer RD120(Intel Xeon E5430)

SPECfp®2006 = 21.2

CPU2006 license: 9017 Test date: Apr-2009
Test sponsor: Lenovo Group Limited Hardware Availability: Apr-2009
Tested by: Lenovo Group Limited Software Availability: Apr-2009

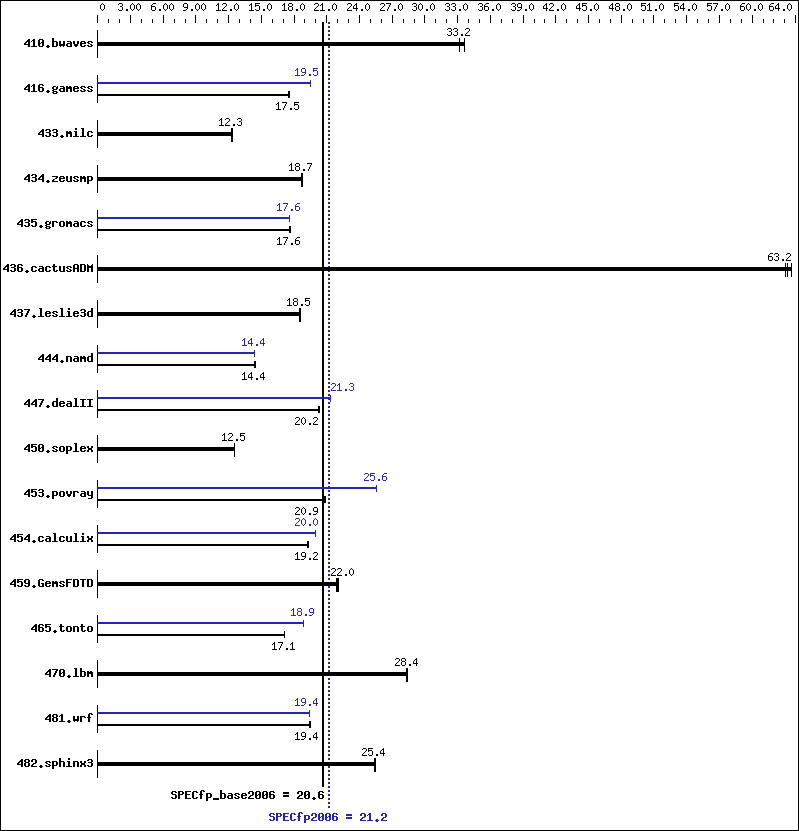

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5430
CPU Characteristics: 1333MHz system bus
CPU MHz: 2666
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2GB Hynix 2Rx8 PC2 5300F)

Disk Subsystem: 1 x 160 GB, SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 R2, Standard x64 Edition
Compiler: Intel C++ Compiler Professional 11.0 for Intel64
Build 20080930 Package ID: w_cproc_p_11.0.072
Intel Visual Fortran Compiler Professional 11.0
for Intel64
Build 20080930 Package ID: w_cprof_p_11.0.074
Microsoft Visual Studio 2008 (for libraries)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 9.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 405 33.6 409 33.2 410 33.2 405 33.6 409 33.2 410 33.2
416.gamess 1112 17.6 1119 17.5 1117 17.5 1003 19.5 1003 19.5 1003 19.5
433.milc 742 12.4 747 12.3 745 12.3 742 12.4 747 12.3 745 12.3
434.zeusmp 483 18.8 486 18.7 487 18.7 483 18.8 486 18.7 487 18.7
435.gromacs 404 17.7 405 17.6 405 17.6 405 17.6 405 17.6 405 17.6
436.cactusADM 188 63.6 189 63.1 189 63.2 188 63.6 189 63.1 189 63.2
437.leslie3d 505 18.6 508 18.5 509 18.5 505 18.6 508 18.5 509 18.5
444.namd 555 14.5 555 14.4 555 14.4 555 14.4 556 14.4 555 14.4
447.dealII 566 20.2 565 20.2 565 20.3 537 21.3 537 21.3 537 21.3
450.soplex 665 12.5 667 12.5 667 12.5 665 12.5 667 12.5 667 12.5
453.povray 256 20.8 255 20.9 255 20.9 208 25.6 208 25.6 208 25.6
454.calculix 428 19.3 429 19.2 429 19.2 412 20.0 412 20.0 412 20.0
459.GemsFDTD 481 22.1 483 22.0 484 21.9 481 22.1 483 22.0 484 21.9
465.tonto 574 17.1 575 17.1 575 17.1 521 18.9 521 18.9 522 18.9
470.lbm 483 28.4 484 28.4 485 28.3 483 28.4 484 28.4 485 28.3
481.wrf 572 19.5 577 19.4 575 19.4 576 19.4 575 19.4 575 19.4
482.sphinx3 765 25.5 767 25.4 767 25.4 765 25.5 767 25.4 767 25.4

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   /Qlowercase
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   -Qauto-ilp32   /F1000000000

C++ benchmarks:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F1000000000   shlW64Mt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   -Qauto-ilp32   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F1000000000   shlW64Mt.lib    -link /FORCE:MULTIPLE
447.dealII:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qopt-prefetch   -Qansi-alias   -Qscalar-rep-   -Qauto-ilp32   /F1000000000   shlW64Mt.lib    -link /FORCE:MULTIPLE
450.soplex:  basepeak = yes
453.povray:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   -Qauto-ilp32   /F1000000000   shlW64Mt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000
436.cactusADM:  basepeak = yes
454.calculix:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qauto-ilp32   /F1000000000
481.wrf:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   -Qauto-ilp32   /F1000000000

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-winx64-revA.20090721.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-winx64-revA.20090721.xml.
