| CPU2006 license: | 22 | Test date: | Oct-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Oct-2008 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5470 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x SATA, 120 GB, 5400 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap Library, Version 8.1 Binutils 2.18.50.0.7.20080502 |

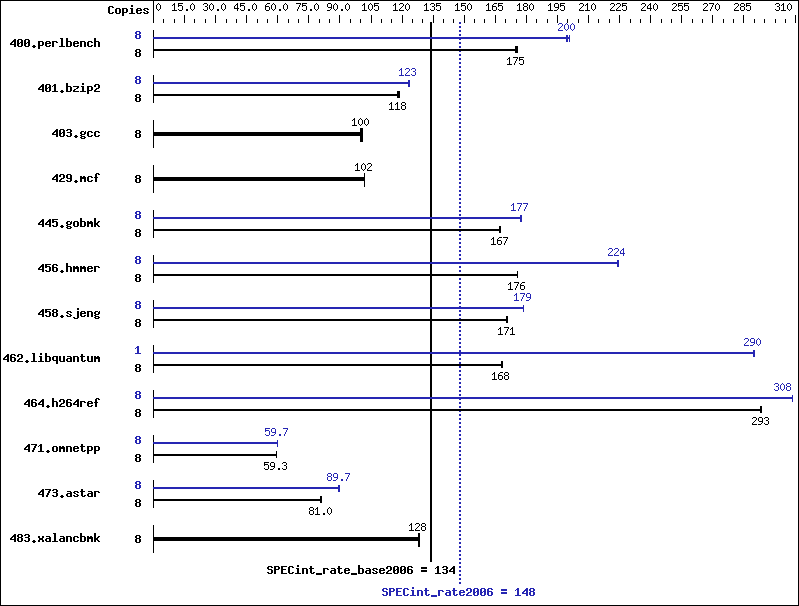

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 445 | 176 | 447 | 175 | 447 | 175 | 8 | 392 | 199 | 389 | 201 | 391 | 200 |
| 401.bzip2 | 8 | 649 | 119 | 652 | 118 | 654 | 118 | 8 | 628 | 123 | 625 | 124 | 627 | 123 |
| 403.gcc | 8 | 641 | 100 | 638 | 101 | 644 | 100 | 8 | 641 | 100 | 638 | 101 | 644 | 100 |
| 429.mcf | 8 | 718 | 102 | 717 | 102 | 717 | 102 | 8 | 718 | 102 | 717 | 102 | 717 | 102 |
| 445.gobmk | 8 | 501 | 168 | 502 | 167 | 502 | 167 | 8 | 474 | 177 | 472 | 178 | 474 | 177 |
| 456.hmmer | 8 | 425 | 176 | 424 | 176 | 424 | 176 | 8 | 334 | 224 | 333 | 224 | 333 | 224 |
| 458.sjeng | 8 | 567 | 171 | 568 | 170 | 567 | 171 | 8 | 542 | 178 | 542 | 179 | 542 | 179 |
| 462.libquantum | 8 | 987 | 168 | 984 | 169 | 986 | 168 | 1 | 71.6 | 289 | 71.5 | 290 | 71.5 | 290 |
| 464.h264ref | 8 | 603 | 293 | 604 | 293 | 603 | 294 | 8 | 574 | 308 | 574 | 308 | 574 | 308 |
| 471.omnetpp | 8 | 843 | 59.3 | 843 | 59.3 | 845 | 59.2 | 8 | 837 | 59.7 | 835 | 59.9 | 838 | 59.7 |
| 473.astar | 8 | 693 | 81.0 | 693 | 81.1 | 695 | 80.8 | 8 | 626 | 89.7 | 629 | 89.2 | 625 | 89.8 |
| 483.xalancbmk | 8 | 430 | 129 | 430 | 128 | 431 | 128 | 8 | 430 | 129 | 430 | 128 | 431 | 128 |
Submit Notes
The config file option 'submit' was used. taskset has been used to bind processes to cores except for 462.libquantum peak
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default) KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
Platform Notes
BIOS configuration: Adjacent Sector Prefetch = Disable
General Notes
For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
