CPU2006 license: | 22 | Test date: | Sep-2008 |
---|---|---|---|
Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Oct-2008 |
Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5270 |
CPU Characteristics: | |
CPU MHz: | 3500 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 6 MB I+D on chip per chip |
L3 Cache: | None |
Other Cache: | None |
Memory: | 8 GB (8x1 GB DDR2 5300F, 2 rank, CL5-5-5, ECC) |
Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP2 kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20080730 Package ID l_cproc_b_11.0.042, l_fproc_b_11.0.042 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Multi-User, Run Level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

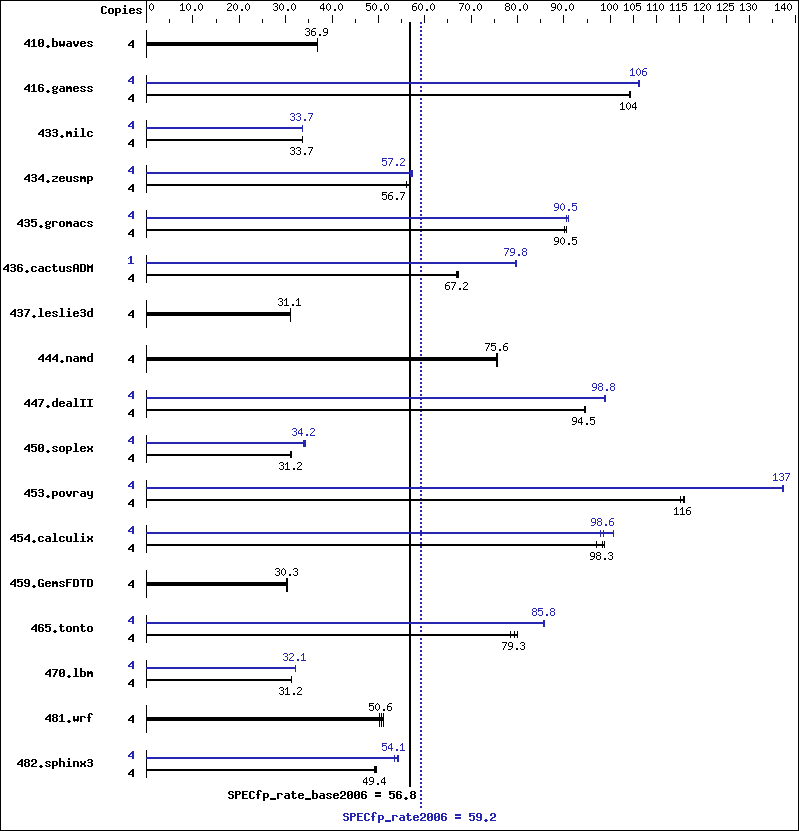

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 4 | 1474 | 36.9 | 1472 | 36.9 | 1472 | 36.9 | 4 | 1474 | 36.9 | 1472 | 36.9 | 1472 | 36.9 |
416.gamess | 4 | 751 | 104 | 752 | 104 | 752 | 104 | 4 | 737 | 106 | 738 | 106 | 737 | 106 |
433.milc | 4 | 1090 | 33.7 | 1091 | 33.7 | 1090 | 33.7 | 4 | 1091 | 33.7 | 1090 | 33.7 | 1090 | 33.7 |
434.zeusmp | 4 | 641 | 56.7 | 641 | 56.8 | 649 | 56.1 | 4 | 638 | 57.0 | 636 | 57.2 | 634 | 57.4 |
435.gromacs | 4 | 316 | 90.5 | 317 | 90.1 | 316 | 90.5 | 4 | 314 | 91.0 | 316 | 90.5 | 315 | 90.5 |
436.cactusADM | 4 | 715 | 66.9 | 711 | 67.2 | 712 | 67.2 | 1 | 150 | 79.8 | 150 | 79.8 | 150 | 79.7 |
437.leslie3d | 4 | 1210 | 31.1 | 1209 | 31.1 | 1210 | 31.1 | 4 | 1210 | 31.1 | 1209 | 31.1 | 1210 | 31.1 |
444.namd | 4 | 424 | 75.6 | 424 | 75.7 | 424 | 75.6 | 4 | 424 | 75.6 | 424 | 75.7 | 424 | 75.6 |
447.dealII | 4 | 484 | 94.5 | 485 | 94.4 | 484 | 94.6 | 4 | 464 | 98.7 | 462 | 98.9 | 463 | 98.8 |
450.soplex | 4 | 1073 | 31.1 | 1069 | 31.2 | 1068 | 31.2 | 4 | 984 | 33.9 | 973 | 34.3 | 976 | 34.2 |
453.povray | 4 | 185 | 115 | 184 | 116 | 184 | 116 | 4 | 155 | 137 | 155 | 137 | 155 | 137 |
454.calculix | 4 | 336 | 98.3 | 340 | 96.9 | 334 | 98.8 | 4 | 335 | 98.6 | 328 | 101 | 337 | 97.9 |
459.GemsFDTD | 4 | 1398 | 30.3 | 1404 | 30.2 | 1398 | 30.3 | 4 | 1398 | 30.3 | 1404 | 30.2 | 1398 | 30.3 |
465.tonto | 4 | 501 | 78.5 | 492 | 80.0 | 497 | 79.3 | 4 | 460 | 85.6 | 459 | 85.8 | 459 | 85.8 |
470.lbm | 4 | 1762 | 31.2 | 1762 | 31.2 | 1762 | 31.2 | 4 | 1711 | 32.1 | 1711 | 32.1 | 1716 | 32.0 |
481.wrf | 4 | 873 | 51.2 | 883 | 50.6 | 891 | 50.1 | 4 | 873 | 51.2 | 883 | 50.6 | 891 | 50.1 |
482.sphinx3 | 4 | 1573 | 49.6 | 1584 | 49.2 | 1578 | 49.4 | 4 | 1435 | 54.3 | 1440 | 54.1 | 1455 | 53.6 |
The config file option 'submit' was used. taskset was used to bind processes to cores except for 436.cactusADM peak
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
BIOS configuration: Enhanced Speedstep Technology = Disable C1 Enhanced Mode = Disable Adjacent Sector Prefetch = Disable SnoopFilter = Enable
For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
icc | |
482.sphinx3: | /opt/intel/Compiler/11.0/042/bin/ia32/icc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icpc | |
450.soplex: | /opt/intel/Compiler/11.0/042/bin/ia32/icpc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias |
470.lbm: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
482.sphinx3: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | basepeak = yes |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | basepeak = yes |
