SPEC® CFP2006 Result

Dell Inc.

PowerEdge SC1435 (AMD Opteron 2360 SE, 2.5 GHz)

SPECfp®_rate2006 = 81.9

SPECfp_rate_base2006 = 74.1

CPU2006 license:	55	Test date:	Jun-2008
Test sponsor:	Dell Inc.	Hardware Availability:	Jun-2008
Tested by:	Dell Inc.	Software Availability:	Jun-2008

Hardware
CPU Name:	AMD Opteron 2360 SE
CPU Characteristics:
CPU MHz:	2500
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	2 MB I+D on chip per chip
Other Cache:	None
Memory:	16 GB (8 x 2GB, DDR2-667 CL5)
Disk Subsystem:	1 x 73GB SAS, 10000 RPM
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.1
Auto Parallel:	No
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

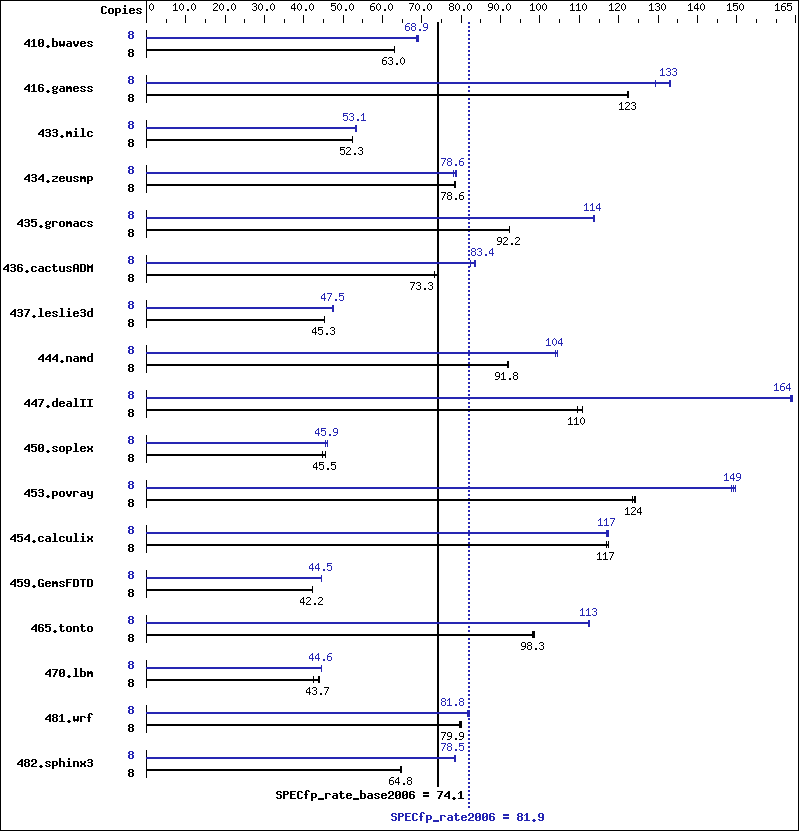

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	8	1725	63.0	1725	63.0	1723	63.1	8	1573	69.1	1577	68.9	1585	68.6
416.gamess	8	1278	123	1282	122	1278	123	8	1177	133	1176	133	1211	129
433.milc	8	1404	52.3	1404	52.3	1405	52.3	8	1384	53.1	1379	53.2	1386	53.0
434.zeusmp	8	926	78.6	926	78.6	930	78.3	8	925	78.7	926	78.6	932	78.1
435.gromacs	8	619	92.2	619	92.3	619	92.2	8	502	114	503	114	503	114
436.cactusADM	8	1304	73.3	1289	74.2	1307	73.1	8	1143	83.6	1147	83.4	1162	82.3
437.leslie3d	8	1661	45.3	1661	45.3	1664	45.2	8	1584	47.5	1583	47.5	1588	47.3
444.namd	8	699	91.8	699	91.8	697	92.0	8	617	104	617	104	614	104
447.dealII	8	835	110	835	110	826	111	8	557	164	559	164	558	164
450.soplex	8	1489	44.8	1465	45.5	1466	45.5	8	1463	45.6	1453	45.9	1452	46.0
453.povray	8	344	124	343	124	343	124	8	285	149	286	149	284	150
454.calculix	8	564	117	563	117	564	117	8	562	118	565	117	563	117
459.GemsFDTD	8	2010	42.2	2012	42.2	2014	42.1	8	1909	44.5	1908	44.5	1909	44.5
465.tonto	8	800	98.3	803	98.0	799	98.5	8	701	112	699	113	699	113
470.lbm	8	2518	43.7	2591	42.4	2505	43.9	8	2465	44.6	2465	44.6	2466	44.6
481.wrf	8	1118	79.9	1116	80.1	1123	79.6	8	1095	81.6	1088	82.1	1093	81.8
482.sphinx3	8	2414	64.6	2404	64.8	2404	64.9	8	1993	78.2	1985	78.5	1986	78.5

Operating System Notes

 'numactl' was used to bind copies to the cores
 Environment variable PGI_HUGE_PAGES set to 150
 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit
 mount -t hugetlbfs nodev /mnt/hugepages
 Set vm/nr_hugepages=1200 in /etc/sysctl.conf

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Fortran benchmarks:

pgf95

Benchmarks using both Fortran and C:

pgcc pgf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -Mnomain
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

Base Other Flags

C benchmarks:

-w -Mipa=jobs:4

C++ benchmarks:

-w -Mipa=jobs:4

Fortran benchmarks:

-w -Mipa=jobs:4

Benchmarks using both Fortran and C:

-w -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

	pathcc
433.milc:	pgcc

C++ benchmarks (except as noted below):

	pathCC
444.namd:	pgcpp

Fortran benchmarks (except as noted below):

	pathf95
410.bwaves:	pgf95
434.zeusmp:	pgf95

Benchmarks using both Fortran and C (except as noted below):

	pgcc pgf95
436.cactusADM:	pathcc pathf95
481.wrf:	pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-fastsse -Msmartalloc=huge:150 -Msafeptr -Mfprelaxed -Mipa=inline -Mipa=arg -Mipa=const -Mipa=ptr -Mipa=shape -tp barcelona-64 -Bstatic_pgi
470.lbm:	-march=barcelona -Ofast -m3dnow
482.sphinx3:	-march=barcelona -Ofast

C++ benchmarks:

444.namd:	-Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fast -Mfprelaxed -Msmartalloc=huge:150 --zc_eh -Mnodepchk -Munroll=n:4 -Munroll=m:8 -tp barcelona-64 -Bstatic_pgi
447.dealII:	-march=barcelona -Ofast -static -INLINE:aggressive=on -OPT:malloc_alg=1 -m32 -fno-exceptions
450.soplex:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -TENV:frame_pointer=off -LNO:prefetch=1
453.povray:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -CG:load_exe=0

Fortran benchmarks:

410.bwaves:	-Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fastsse -Mfprelaxed -Msmartalloc -Mprefetch=distance:12 -Mprefetch=nta -tp barcelona-64 -Bstatic_pgi
416.gamess:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-fastsse -Mfprelaxed -Msmartalloc=huge:150 -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
437.leslie3d:	-march=barcelona -Ofast -m3dnow -OPT:unroll_size=256 -CG:load_exe=0 -OPT:malloc_alg=1
459.GemsFDTD:	-march=barcelona -Ofast -LNO:fission=2 -LNO:simd=2 -OPT:malloc_alg=1
465.tonto:	-march=barcelona -Ofast -OPT:malloc_alg=1 -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:	-fast -Mfpapprox=rsqrt -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 -tp barcelona-64 -Bstatic_pgi
436.cactusADM:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -WOPT:aggstr=0
454.calculix:	-fastsse -Mfprelaxed -Msmartalloc=huge:150 -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
481.wrf:	-march=barcelona -Ofast -LNO:blocking=off -LNO:prefetch_ahead=10 -OPT:malloc_alg=1 -m3dnow -LANG:copyinout=off -IPA:callee_limit=5000

Peak Other Flags

C benchmarks:

433.milc:

-w -Mipa=jobs:4

C++ benchmarks:

444.namd:

-w -Mipa=jobs:4(pass 2)

Fortran benchmarks:

410.bwaves:	-w -Mipa=jobs:4(pass 2)
434.zeusmp:	-w -Mipa=jobs:4

Benchmarks using both Fortran and C:

435.gromacs:	-w -Mipa=jobs:4
454.calculix:	-w -Mipa=jobs:4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd421GH-flags.20090713.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd421GH-flags.20090713.01.xml.
