CPU2006 license: | 22 | Test date: | Feb-2008 |
---|---|---|---|
Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Mar-2008 |
Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon L5420 |
CPU Characteristics: | 1333 MHz system bus |
CPU MHz: | 2500 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CL 5-5-5, ECC) |
Disk Subsystem: | 1x SAS, 73 GB, 15000 rpm |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ and Fortran Compiler for Linux32 and Linux64 Version 10.1 - Build 20070725 |
Auto Parallel: | Yes |
File System: | ext2 |
System State: | Multi-User Run Level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | binutils-2.17.50.0.5-0.1.x86_64 |

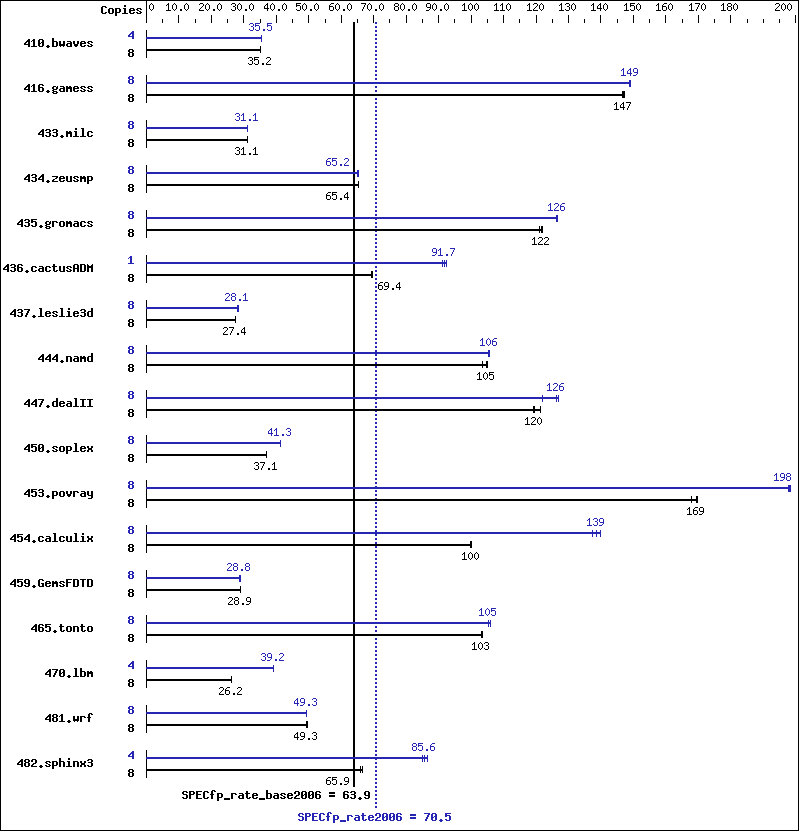

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 3086 | 35.2 | 3090 | 35.2 | 3085 | 35.2 | 4 | 1529 | 35.5 | 1532 | 35.5 | 1532 | 35.5 |
416.gamess | 8 | 1064 | 147 | 1066 | 147 | 1068 | 147 | 8 | 1052 | 149 | 1051 | 149 | 1050 | 149 |
433.milc | 8 | 2367 | 31.0 | 2364 | 31.1 | 2364 | 31.1 | 8 | 2363 | 31.1 | 2363 | 31.1 | 2371 | 31.0 |
434.zeusmp | 8 | 1113 | 65.4 | 1115 | 65.3 | 1113 | 65.4 | 8 | 1119 | 65.1 | 1117 | 65.2 | 1117 | 65.2 |
435.gromacs | 8 | 472 | 121 | 469 | 122 | 468 | 122 | 8 | 452 | 126 | 452 | 126 | 451 | 127 |
436.cactusADM | 8 | 1381 | 69.2 | 1378 | 69.4 | 1374 | 69.6 | 1 | 129 | 92.4 | 131 | 91.2 | 130 | 91.7 |
437.leslie3d | 8 | 2744 | 27.4 | 2744 | 27.4 | 2741 | 27.4 | 8 | 2667 | 28.2 | 2675 | 28.1 | 2678 | 28.1 |
444.namd | 8 | 612 | 105 | 612 | 105 | 619 | 104 | 8 | 608 | 106 | 607 | 106 | 609 | 105 |
447.dealII | 8 | 765 | 120 | 755 | 121 | 767 | 119 | 8 | 720 | 127 | 749 | 122 | 725 | 126 |
450.soplex | 8 | 1798 | 37.1 | 1804 | 37.0 | 1798 | 37.1 | 8 | 1618 | 41.2 | 1617 | 41.3 | 1616 | 41.3 |
453.povray | 8 | 254 | 168 | 251 | 169 | 251 | 170 | 8 | 215 | 198 | 214 | 198 | 215 | 198 |
454.calculix | 8 | 660 | 100 | 659 | 100 | 659 | 100 | 8 | 480 | 137 | 476 | 139 | 472 | 140 |
459.GemsFDTD | 8 | 2936 | 28.9 | 2938 | 28.9 | 2938 | 28.9 | 8 | 2951 | 28.8 | 2940 | 28.9 | 2947 | 28.8 |
465.tonto | 8 | 762 | 103 | 761 | 103 | 762 | 103 | 8 | 743 | 106 | 746 | 105 | 746 | 105 |
470.lbm | 8 | 4195 | 26.2 | 4194 | 26.2 | 4193 | 26.2 | 4 | 1401 | 39.2 | 1401 | 39.2 | 1400 | 39.2 |
481.wrf | 8 | 1806 | 49.5 | 1813 | 49.3 | 1812 | 49.3 | 8 | 1812 | 49.3 | 1807 | 49.4 | 1814 | 49.3 |
482.sphinx3 | 8 | 2365 | 65.9 | 2348 | 66.4 | 2368 | 65.8 | 4 | 917 | 85.0 | 911 | 85.6 | 900 | 86.6 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default)
BIOS configuration: Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable
All binaries were built with 64-bit Intel compiler except: 437.leslie3d, 450.soplex, 470.lbm, and 482.sphinx3 in peak were built with 32-bit Intel compiler by changing the path for include and library files. For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fast |
-fast |
-fast |
-fast |
/opt/intel/cc/10.1.008/bin/icc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include | |
433.milc: | icc |
icpc | |
450.soplex: | /opt/intel/cc/10.1.008/bin/icpc -L/opt/intel/cc/10.1.008/lib -I/opt/intel/cc/10.1.008/include |
ifort | |
437.leslie3d: | /opt/intel/fc/10.1.008/bin/ifort -L/opt/intel/fc/10.1.008/lib -I/opt/intel/fc/10.1.008/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
470.lbm: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -scalar-rep- -prefetch -opt-malloc-options=3 |
482.sphinx3: | -fast -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -fast -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -fast -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -ansi-alias |
410.bwaves: | -fast -prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -opt-malloc-options=3 |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -Ob0 -prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -prefetch -parallel -auto-ilp32 |
454.calculix: | -fast -unroll-aggressive -auto-ilp32 |
481.wrf: | -fast -auto-ilp32 |
