CPU2006 license: | 55 | Test date: | Jan-2008 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Nov-2007 |
Tested by: | Dell Inc. | Software Availability: | Nov-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5410 |
CPU Characteristics: | 1333 MHz system bus |
CPU MHz: | 2333 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8x2 GB DDR2-667 ECC CL5 FB-DIMM) |
Disk Subsystem: | 1 x 73 GB SAS 15k RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Multi-user, run level 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 Binutils 2.17.50.0.15 |

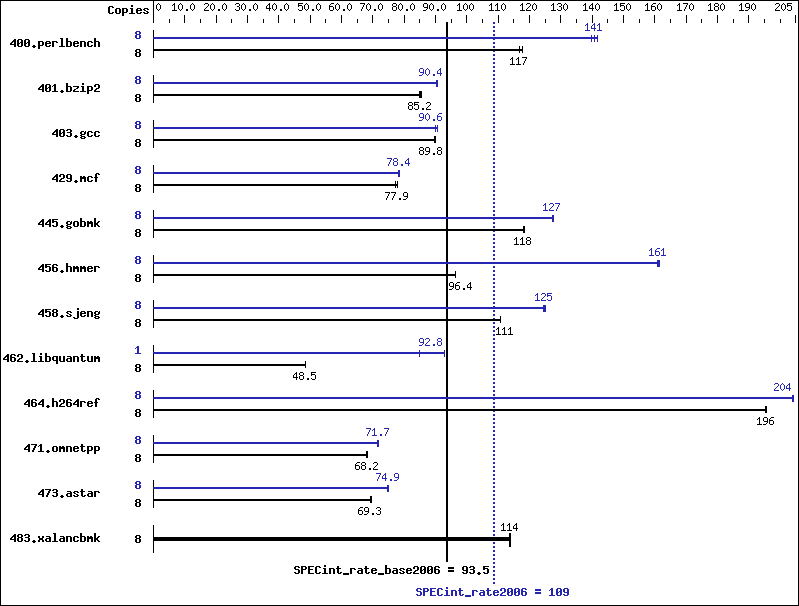

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 664 | 118 | 668 | 117 | 668 | 117 | 8 | 559 | 140 | 552 | 142 | 555 | 141 |
401.bzip2 | 8 | 907 | 85.2 | 903 | 85.5 | 911 | 84.8 | 8 | 853 | 90.5 | 855 | 90.3 | 854 | 90.4 |
403.gcc | 8 | 719 | 89.6 | 715 | 90.1 | 717 | 89.8 | 8 | 710 | 90.6 | 715 | 90.1 | 711 | 90.6 |
429.mcf | 8 | 944 | 77.3 | 936 | 77.9 | 936 | 78.0 | 8 | 932 | 78.3 | 930 | 78.4 | 931 | 78.4 |
445.gobmk | 8 | 711 | 118 | 710 | 118 | 708 | 119 | 8 | 658 | 128 | 659 | 127 | 658 | 127 |
456.hmmer | 8 | 775 | 96.3 | 774 | 96.4 | 774 | 96.5 | 8 | 462 | 161 | 464 | 161 | 463 | 161 |
458.sjeng | 8 | 874 | 111 | 873 | 111 | 874 | 111 | 8 | 776 | 125 | 774 | 125 | 777 | 125 |
462.libquantum | 8 | 3421 | 48.5 | 3421 | 48.5 | 3420 | 48.5 | 1 | 223 | 92.8 | 244 | 85.0 | 223 | 92.8 |
464.h264ref | 8 | 904 | 196 | 906 | 195 | 905 | 196 | 8 | 867 | 204 | 867 | 204 | 867 | 204 |
471.omnetpp | 8 | 733 | 68.2 | 735 | 68.0 | 733 | 68.2 | 8 | 697 | 71.8 | 698 | 71.6 | 697 | 71.7 |
473.astar | 8 | 810 | 69.3 | 810 | 69.3 | 807 | 69.6 | 8 | 752 | 74.7 | 749 | 74.9 | 750 | 74.9 |
483.xalancbmk | 8 | 485 | 114 | 486 | 114 | 484 | 114 | 8 | 485 | 114 | 486 | 114 | 484 | 114 |
OMP_NUM_THREADS set to number of cores KMP_STACK_SIZE set to 64M KMP_AFFINITY set to physical,0
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
BIOS Settings: Adjacent Cache Line Prefetch = Disabled (default Enabled) Hardware Prefetcher = Disabled (default Enabled)
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast -inline-calloc -opt-malloc-options=3 |
-xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
429.mcf: | -fast -prefetch |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/users/rahul/cpu2006.1.0/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
