CPU2006 license: | 22 | Test date: | Apr-2007 |
---|---|---|---|
Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Jul-2006 |
Tested by: | Fujitsu Siemens Computers | Software Availability: | Feb-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon 5140 |
CPU Characteristics: | 1333 MHz system bus |
CPU MHz: | 2333 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 4 MB I+D on chip per chip |
L3 Cache: | None |
Other Cache: | None |
Memory: | 8 GB (8x1 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
Disk Subsystem: | SAS (73GB 15400 rpm) |
Other Hardware: | None |
Software | |
---|---|
Operating System: | 64-Bit SUSE LINUX Enterprise Server 10, Kernel 2.6.16.21-0.8-smp on an x86_64 |
Compiler: | Intel C++ Compiler for IA32/EM64T application, Version 9.1 - Build 20070215, Package-ID: l_cc_p_9.1.047 |
Auto Parallel: | No |
File System: | ext2 |
System State: | Multiuser, Runlevel 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Smart Heap Library, Version 8.1 |

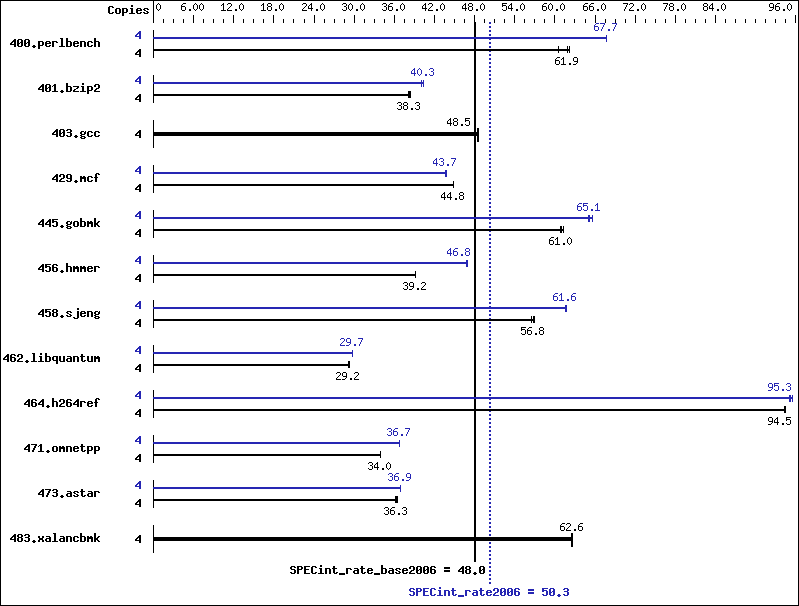

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 4 | 645 | 60.6 | 628 | 62.2 | 631 | 61.9 | 4 | 577 | 67.7 | 577 | 67.7 | 578 | 67.6 |
401.bzip2 | 4 | 1006 | 38.4 | 1009 | 38.3 | 1015 | 38.0 | 4 | 957 | 40.3 | 964 | 40.0 | 956 | 40.4 |
403.gcc | 4 | 664 | 48.5 | 663 | 48.6 | 666 | 48.4 | 4 | 664 | 48.5 | 663 | 48.6 | 666 | 48.4 |
429.mcf | 4 | 814 | 44.8 | 814 | 44.8 | 813 | 44.9 | 4 | 834 | 43.7 | 836 | 43.6 | 835 | 43.7 |
445.gobmk | 4 | 685 | 61.3 | 689 | 60.9 | 688 | 61.0 | 4 | 639 | 65.6 | 645 | 65.1 | 644 | 65.1 |
456.hmmer | 4 | 954 | 39.1 | 952 | 39.2 | 953 | 39.2 | 4 | 796 | 46.9 | 797 | 46.8 | 797 | 46.8 |
458.sjeng | 4 | 850 | 56.9 | 853 | 56.8 | 857 | 56.5 | 4 | 786 | 61.5 | 784 | 61.7 | 786 | 61.6 |
462.libquantum | 4 | 2836 | 29.2 | 2839 | 29.2 | 2840 | 29.2 | 4 | 2784 | 29.8 | 2788 | 29.7 | 2792 | 29.7 |
464.h264ref | 4 | 936 | 94.5 | 937 | 94.5 | 938 | 94.3 | 4 | 929 | 95.3 | 931 | 95.1 | 927 | 95.5 |
471.omnetpp | 4 | 736 | 34.0 | 735 | 34.0 | 736 | 34.0 | 4 | 680 | 36.8 | 681 | 36.7 | 681 | 36.7 |
473.astar | 4 | 774 | 36.3 | 770 | 36.5 | 775 | 36.2 | 4 | 761 | 36.9 | 761 | 36.9 | 762 | 36.9 |
483.xalancbmk | 4 | 441 | 62.6 | 441 | 62.5 | 440 | 62.7 | 4 | 441 | 62.6 | 441 | 62.5 | 440 | 62.7 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run '/usr/bin/taskset' used to bind processes to CPUs
The system bus runs at 1333 MHz All binaries were built with 32-bit Intel compiler except: 401.bzip2, 456.hmmer and 462.libquantum in peak were built with 64-bit Intel compiler by changing the path for include and library files. BIOS configuration: Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
400.perlbench: | -DSPEC_CPU_LINUX_X64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-fast |
-xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof_gen(pass 1) -prof_use(pass 2) -fast |
401.bzip2: | -fast |
403.gcc: | basepeak = yes |
429.mcf: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
445.gobmk: | Same as 429.mcf |
456.hmmer: | Same as 400.perlbench |
458.sjeng: | Same as 429.mcf |
462.libquantum: | Same as 400.perlbench |
464.h264ref: | Same as 429.mcf |
471.omnetpp: | -prof_gen(pass 1) -prof_use(pass 2) -xP -O3 -ipo -no-prec-div -L/opt/SmartHeap_8_1/lib -lsmartheap |
473.astar: | -prof_gen(pass 1) -prof_use(pass 2) -fast -L/opt/SmartHeap_8_1/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
