SPEC® CINT2006 Result

Hewlett-Packard Company

HP Integrity rx8640 (1.6GHz/24MB Dual-Core
Intel Itanium 2)

SPECint®_rate2006 = 416

SPECint_rate_base2006 = 385

CPU2006 license:	03	Test date:	Sep-2006
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Sep-2006
Tested by:	Hewlett-Packard Company	Software Availability:	Sep-2006

Hardware
CPU Name:	Dual-Core Intel Itanium 2 9050
CPU Characteristics:	1.6GHz/24MB, 533MHz FSB
CPU MHz:	1600
FPU:	Integrated
CPU(s) enabled:	32 cores, 16 chips, 2 cores/chip
CPU(s) orderable:	1-16 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	12 MB I+D on chip per core
Other Cache:	None
Memory:	128 GB (64x2GB DIMMs)
Disk Subsystem:	73GB 15K RPM SCSI
Other Hardware:	None

Software
Operating System:	HPUX11i-TCOE B.11.23.0609
Compiler:	HP C/aC++ Developer's Bundle C.11.23.12
Auto Parallel:	No
File System:	vxfs
System State:	Multi-user
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	MicroQuill Smartheap 8.0

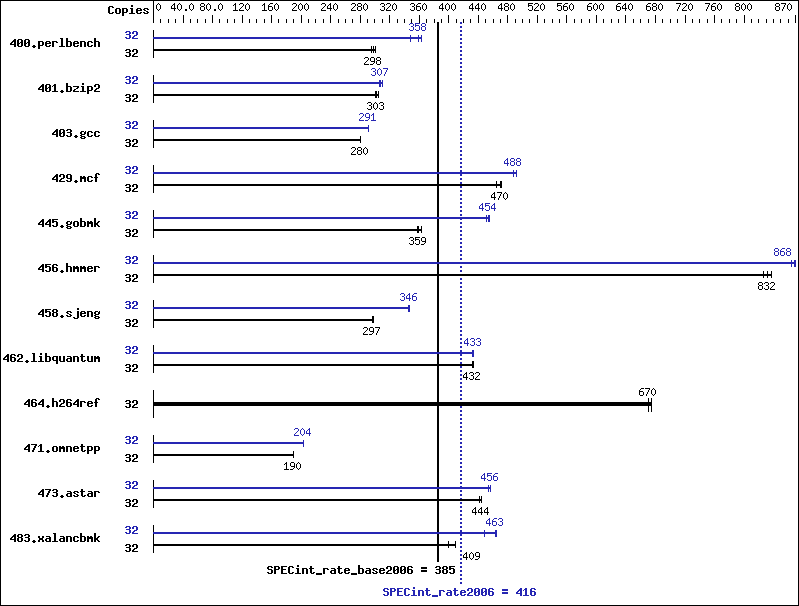

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	32	1060	295	1048	298	1039	301	32	899	348	872	358	862	363
401.bzip2	32	1020	303	1029	300	1012	305	32	1008	306	1005	307	997	310
403.gcc	32	919	280	920	280	921	280	32	886	291	884	292	886	291
429.mcf	32	619	471	621	470	628	465	32	598	488	593	492	598	488
445.gobmk	32	939	357	936	359	924	363	32	744	451	740	454	738	455
456.hmmer	32	361	826	359	832	357	837	32	345	865	344	869	344	868
458.sjeng	32	1298	298	1305	297	1307	296	32	1119	346	1116	347	1121	346
462.libquantum	32	1531	433	1536	432	1535	432	32	1537	432	1532	433	1532	433
464.h264ref	32	1049	675	1057	670	1056	670	32	1049	675	1057	670	1056	670
471.omnetpp	32	1057	189	1052	190	1052	190	32	983	203	982	204	983	204
473.astar	32	509	442	505	444	506	444	32	495	454	492	457	493	456
483.xalancbmk	32	552	400	540	409	540	409	32	493	448	475	464	477	463

Operating System Notes

   The system had the September 2006 HP-UX 11i v2 Technical Computing
   Operating Environment (TCOE) and compilers installed, along with
   the following patches:

   PHSS_34858  linker + fdp cumulative patch
   PHSS_34853  Math Library Cumulative Patch
   PHSS_34854  Integrity Unwind Library
   PHSS_34855  HP C Compiler (A.06.12)
   PHSS_34856  aC++ Compiler (A.06.12)
   PHSS_34857  u2comp/be/plugin library patch
   PHSS_34395  FORTRAN I/O Library [libIO77]
   PHSS_34397  FORTRAN Intrinsics [libF90 B.11.23.17]
   PHSS_34399  Fortran Product Patch, v3.1 to v3.1.1
   PHKL_34020  Perfmon enhancements and Itanium Dual-Core

   The following kernel tunables were set, in addition to the defaults
   set by the Technical Computing OE:

   dbc_max_pct=20
   dbc_min_pct=20
   maxdsiz=3221225472
   maxssiz=401604608

Platform Notes

 The system was configured as a single partition with 4 cells and
 4 processors (8 cores) per cell.  Memory was configured as 50% local
 and 50% interleaved.

 The following config file entry was used to bind
 processes to cells using the HP-UX "mpsched" utility:
 submit = let "MYNUM=$SPECCOPYNUM" ; let "LDOM=\$MYNUM/8" ; mpsched -l \$LDOM $command

Base Compiler Invocation

C benchmarks:

/opt/ansic/bin/cc -Ae

C++ benchmarks:

/opt/aCC/bin/aCC -Aa

Base Portability Flags

400.perlbench:	-DSPEC_CPU_HPUX_IA64
403.gcc:	-DSPEC_CPU_HPUX
462.libquantum:	-DSPEC_CPU_HPUX
483.xalancbmk:	-DSPEC_CPU_HPUX_IA64

Base Optimization Flags

C benchmarks:

+Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M -Wl,-N

C++ benchmarks:

+Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M -Wl,-N /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a

Peak Compiler Invocation

C benchmarks:

/opt/ansic/bin/cc -Ae

C++ benchmarks:

/opt/aCC/bin/aCC -Aa

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_HPUX_IA64
403.gcc:	-DSPEC_CPU_HPUX
462.libquantum:	-DSPEC_CPU_HPUX
483.xalancbmk:	-DSPEC_CPU_HPUX_IA64

Peak Optimization Flags

C benchmarks:

400.perlbench:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M -Wl,-N
401.bzip2:	Same as 400.perlbench
403.gcc:	Same as 400.perlbench
429.mcf:	Same as 400.perlbench
445.gobmk:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct
456.hmmer:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M
458.sjeng:	Same as 445.gobmk
462.libquantum:	Same as 456.hmmer
464.h264ref:	basepeak = yes

C++ benchmarks:

471.omnetpp:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a
473.astar:	+Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a
483.xalancbmk:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.06.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.06.xml.
