SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY RX220, AMD Opteron 280 processor,
2.40 GHz

CPU2006 license: 22 Test date: Apr-2006
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Dec-2005
Tested by: Fujitsu Siemens Computers Software Availability: Mar-2006

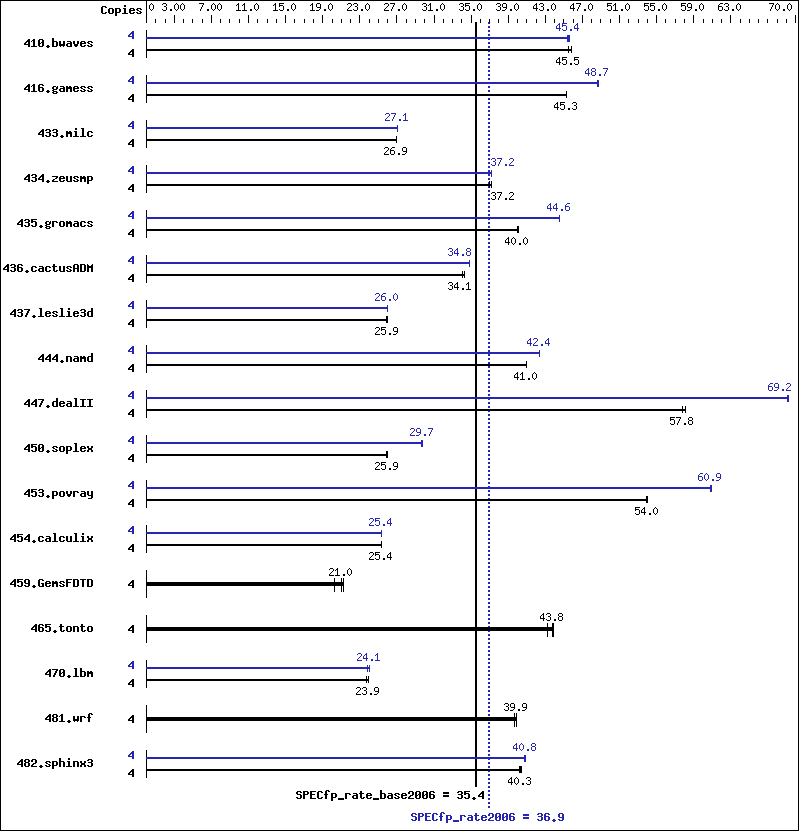

Benchmark results graph
Hardware
CPU Name: AMD Opteron 280
CPU Characteristics: Opteron 280
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB DDR PC-3200R 2-rank CAS 3-3-3)
Disk Subsystem: Western Digital WD2500 (SATA, 7.2krpm)
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 9 (x86_64) + SP3
Compiler: QLogic Pathscale Compiler Suite 2.4
Auto Parallel: No
File System: ext3
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1186 45.8 1195 45.5 1196 45.5 4 1191 45.7 1197 45.4 1196 45.4
416.gamess 4 1730 45.3 1730 45.3 1730 45.3 4 1609 48.7 1609 48.7 1609 48.7
433.milc 4 1364 26.9 1364 26.9 1365 26.9 4 1356 27.1 1357 27.1 1356 27.1
434.zeusmp 4 977 37.2 979 37.2 985 36.9 4 979 37.2 980 37.2 979 37.2
435.gromacs 4 714 40.0 712 40.1 713 40.0 4 641 44.6 641 44.6 641 44.6
436.cactusADM 4 1402 34.1 1396 34.2 1402 34.1 4 1374 34.8 1371 34.9 1373 34.8
437.leslie3d 4 1447 26.0 1450 25.9 1452 25.9 4 1445 26.0 1446 26.0 1450 25.9
444.namd 4 783 41.0 783 41.0 783 41.0 4 756 42.4 757 42.4 757 42.4
447.dealII 4 792 57.8 788 58.1 792 57.8 4 661 69.3 662 69.1 661 69.2
450.soplex 4 1281 26.0 1287 25.9 1286 25.9 4 1119 29.8 1122 29.7 1125 29.7
453.povray 4 394 54.0 394 54.0 395 53.9 4 350 60.9 350 60.9 350 60.9
454.calculix 4 1301 25.4 1302 25.4 1302 25.4 4 1301 25.4 1302 25.3 1301 25.4
459.GemsFDTD 4 2095 20.3 1997 21.3 2017 21.0 4 2095 20.3 1997 21.3 2017 21.0
465.tonto 4 899 43.8 898 43.8 910 43.2 4 899 43.8 898 43.8 910 43.2
470.lbm 4 2299 23.9 2314 23.8 2294 24.0 4 2311 23.8 2282 24.1 2283 24.1
481.wrf 4 1121 39.9 1120 39.9 1127 39.6 4 1121 39.9 1120 39.9 1127 39.6
482.sphinx3 4 1929 40.4 1935 40.3 1937 40.3 4 1913 40.7 1910 40.8 1907 40.9

General Notes


taskset has been used to bind processes to CPUs

For information about Fujitsu Siemens Computers in your country please see:
http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64   -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast

Fortran benchmarks:

 -Ofast

Benchmarks using both Fortran and C:

 -Ofast

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
470.lbm:  Same as 433.milc
482.sphinx3:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:sclrze=off   -LNO:prefetch=1

C++ benchmarks:

444.namd:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
447.dealII:  -Ofast   -m32   -fno-exceptions
450.soplex:  -m32   -O3   -OPT:IEEE_arith=3   -CG:load_exe=0   -CG:movnti=1   -LNO:minvariant=off   -fno-exceptions
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-fast-math

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -OPT:IEEE_arith=3   -LNO:blocking=off   -LNO:ignore_feedback=off
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
434.zeusmp:  -O3   -CG:load_exe=0
437.leslie3d:  -O3   -OPT:Ofast
459.GemsFDTD:  basepeak = yes
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -O3   -OPT:rsqrt=2   -OPT:ro=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch_ahead=5   -LNO:ou_prod_max=10   -LNO:full_unroll=5   -ipa
454.calculix:  -Ofast
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.02.xml.
